UPS Type
Line Interactive
Backup Time (Half/Full Load)
14 min/4.9 min
Ports
EPO, RS232, Slot for SNMPWEBCARD, USB
Automatic Volts Regulation
Yes
NEMA Plug Configuration
5-15P
Fax/Modem Line Protection
No
Special Features
Cold Start Operation Supported, Hot Swappable Batteries, Individually Controllable Load Banks
VA Rating - UPS Systems
1.5 kVA
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
NEMA Receptacle Configuration
(8) 5-15R
Footnotes
Slot for SNMPWEBCARD
Standards
CSA (Canada), FCC Part 15 Class a (USA), NOM (Mexico), RoHS, UL1778
Transfer Time
1 to 4 msec
Includes
1440VA 1440W 120V Line-Interactive UPS, DB9 Cable, Rack Mounting Hardware, Tower Support Stands, USB Cables
Battery Type
Sealed Lead Acid (SLA)
Capacity - Batteries
1500 VA/1350 W
Operating Temp. Range
122°F (50°C)
Input Connection
NEMA 5-15P Plug
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Output Voltage Regulation (Battery Mode)
+/- 5%
Output Volt Amp Capacity (VA)
1500
Audible Noise
45 dBA maximum, front side 1m
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports , download PowerAlert Local software at http://www.tripplite.com/poweralert
Rated input current (Maximum Load)
12A
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
Primary Form Factor
Rackmount
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Nominal Input Voltage(s) Supported
120V AC
Communications Cable
USB and DB9 cabling included
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Battery Access
Front panel battery access door
Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
EMI / RFI AC Noise Suppression
Yes
Full Load Runtime (min.)
4.9 min. (1350w)
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
External Battery Pack Compatibility
BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)
Severe Undervoltage Correction
Input voltages between 83 and 94 are boosted by 24%
Grounding Lug
Back panel grounding lug
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Load Management Receptacles
Two switchable two-outlet 5-15R load banks
Output kW Capacity (kW)
1.35
Output kVA Capacity (kVA)
1.5
Input Circuit Breakers
15A
AC Mode Efficiency Rating (100% Load)
0.95
UPS AC Suppression Joule Rating
570
Low Voltage Transfer to Battery Power (Setpoint)
83
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Communications Interface
USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
High Availability UPS Features
Hot swappable batteries
Overvoltage Correction
Input voltages between 127 and 145 are reduced by 12%
Output Voltage Regulation (Line Mode)
-14%, +6%
Relative Humidity
0 to 95%, non-condensing
DC System Voltage (VDC)
36
Half Load Runtime (min.)
14 min. (675w)
AC Mode BTU / Hr. (Full Load)
237
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Output AC Waveform (Battery Mode)
Pure Sine wave
Individually Controllable Load Banks
Yes
Battery Mode BTU / Hr. (Full Load)
751
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90% (typical, full load discharge)
Switches
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Undervoltage Correction
Input voltages between 95 and 108 are boosted by 12%
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX
Battery Replacement Description
Hot-swappable, user replaceable batteries
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
High Voltage Transfer to Battery Power (Setpoint)
145
Internal UPS Replacement Battery Cartridge
RBC93-2U
UPS AC Suppression Response Time
Instantaneous
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Output Watt Capacity (Watts)
1350
Recommended Electrical Service
15A 120V
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Output Capacity Details
Output is reduced to 1200 watts maximum when used with external battery packs
Status Indicators
UPS status (Solid Green), Battery Mode (Solid Orange), Battery Low Warning (Flashing Orange), Fault/Alarm (Solid Red)
Battery Chemistry
Valve Regulated Lead Acid
Typical Battery Recharge Time
4.50 Hour
Storage Temperature
5°F (-15°C) - 122°F (50°C)
Thermal Dissipation
81.44 W
Alarm
Overload, Power Failure, Remote Shutdown, UPS StartUp, Low Battery
Sound Emission (A-Weighted)
40 dB(A)
Load Capacity
1440 VA/1440 W
Maximum Operating Temperature
104°F (40°C)
Battery Characteristics
Valve-regulated
Network Management
SNMP Manageable
Package Contents

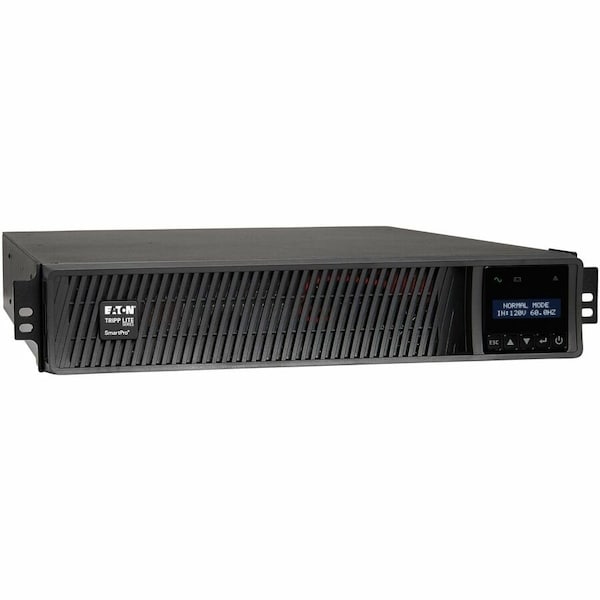

SMART1500RMXL2UA UPS System, PowerAlert Software with USB, Serial & EPO Cabling, 4 Post Installation Kit, Owner's Manual
Energy Saving
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Surge Energy Rating
570 J
External Battery Compatible
External Battery Pack Compatible
Includes Battery
Battery Included
Run Time - Full Load
5.1 min
Number of Outlets - UPS
8
Output Ports Included
Contact Closure, DB9 Serial, EPO, SNMP, USB
Battery Recharge Time
4.5 hr
Receptacle Configuration
5-15R
Surge Suppression Rating
380 J
External Battery Pack Part Number
BP48VRM2U
Input Current - Maximum
12 A
Manufacturer Warranty
2 yr
Data Line Protection
Includes Data Line Surge Protection
Operating Temperature - Maximum
104 Degrees F
Transfer Time - Minimum
1 msec
Transfer Time - Maximum
4 msec
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Power Rating - Real
1.35 kW
Audible Alarm Conditions
Low Battery, Overload, Power Outage
Operating Temperature - Minimum
32 Degrees F
Number of Outlets - Surge Only
8
Power Rating - Apparent
1.5 kVA
