VA Rating - UPS Systems
1.5 kVA
UPS Type
Line Interactive
Output Voltage
220/230/240V AC
Backup Time (Half/Full Load)
13 min/4.5 min
Footnotes
USB and TEL/DSL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Automatic Volts Regulation
Yes
Includes
(2) C13 to C14 Interconnection Cables, Line Interactive UPS, USB and Phone Line Cables
Special Features
Hot Swappable Batteries
NEMA Receptacle Configuration
(8) C13
Fax/Modem Line Protection
Yes
Standards
CE, IEC/EN 62040, IRAM (Argentina), RoHS, UL1778
NEMA Plug Configuration
C14
Transfer Time
2 to 4 msec
Capacity - Batteries
1500 VA/940 W
Operating Temp. Range
122°F (50°C)
Input Connection
NEMA 5-15P Plug
Housing Material
Polycarbonate
Undervoltage Correction
Input voltages between 177 and 199 are boosted by 14%
Overvoltage Correction
Input voltages between 245 and 282 are reduced by 12%
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 151 to 282
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Battery Mode BTU / Hr. (Full Load)
657
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
UPS Certification Details
CE 62040
Half Load Runtime (min.)
13 min. (470w)
Frequency Compatibility Details
Automatic frequency selection
Battery Replacement Description
Hot-swappable, user replaceable batteries
Output kVA Capacity (kVA)
1.5
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
AC Mode BTU / Hr. (Full Load)
99
External Battery Pack Compatibility
BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
Output Watt Capacity (Watts)
940
AC Mode Efficiency Rating (100% Load)
0.97
Nominal Input Voltage(s) Supported
230V AC
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Output Volt Amp Capacity (VA)
1500
Full Load Runtime (min.)
4.5 min. (940w)
Individually Controllable Load Banks
No
Relative Humidity
0 to 95%, non-condensing
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Severe Undervoltage Correction
Input voltages between 151 and 176 are boosted by 30%
High Voltage Transfer to Battery Power (Setpoint)
282
Nominal Output Voltage(s) Supported
220V; 230V; 240V
UPS AC Suppression Response Time
Instantaneous
Communications Interface
USB
High Availability UPS Features
Hot swappable batteries
EMI / RFI AC Noise Suppression
Yes
Communications Cable
USB interface cable included
Output Voltage Regulation (Battery Mode)
+/- 5%
Primary Form Factor
Tower
Included Output Power Cables
Includes 2 C13 to C14 output power cables
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
Battery Access
Battery access door
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Internal UPS Replacement Battery Cartridge
RBC51 (quantity 2)
UPS AC Suppression Joule Rating
340
Low Voltage Transfer to Battery Power (Setpoint)
151
Rated input current (Maximum Load)
5A
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
UPS Certifications
Tested to UL1778 (USA); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina)
Output Voltage Regulation (Line Mode)
-18%, +8%
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
UPS Input Connection Description
Attached 15cm line cord with C14 inlet. The C14 inlet accepts user-supplied AC power cord with country-specific plug.
DC System Voltage (VDC)
24
Output AC Waveform (Battery Mode)
PWM sine wave
Installation Form Factors Supported with Included Accessories
Tower
Hot-Swap PDU options
PDUBHV10 (2U / 8 C13 outlets)
Status Indicators
4 Front Panel LEDs: Line power, Battery power, Low battery, Replace battery, Voltage regulation operation
Surge Energy Rating
1920 J
Typical Battery Recharge Time
4 Hour
Load Capacity
1500 VA/940 W
Maximum Operating Temperature
122°F (50°C)
Additional Information
Offers voltage regulation, surge suppression and long lasting battery support, Regulates brownouts as low as 151 and overvoltages to 282V back to usable 230V nominal levels without using battery power, 1500VA power handling ability supports a variety of sensitive electronic equipment, Runtime is further expandable with the addition of BP24V14 external battery pack, Cold Start: UPS can be "cold started" to enable temporary AC output during a power failure
Dataline Protection
RJ-11, RJ-45
Waveform Type
Pulse-width Modulated Sine Wave
Package Contents

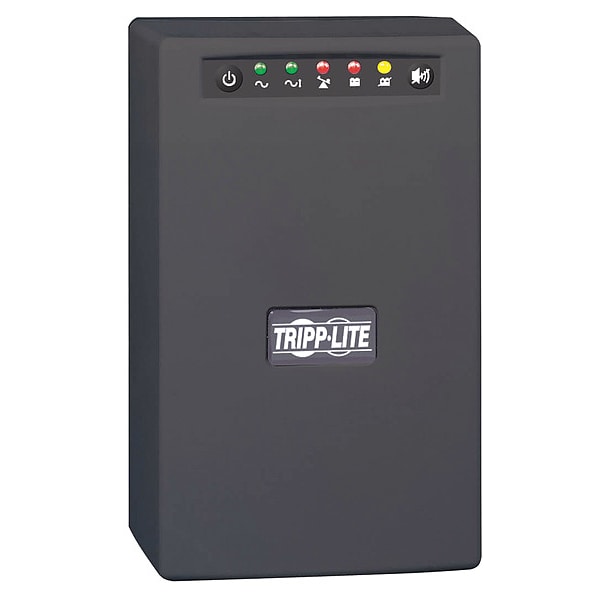

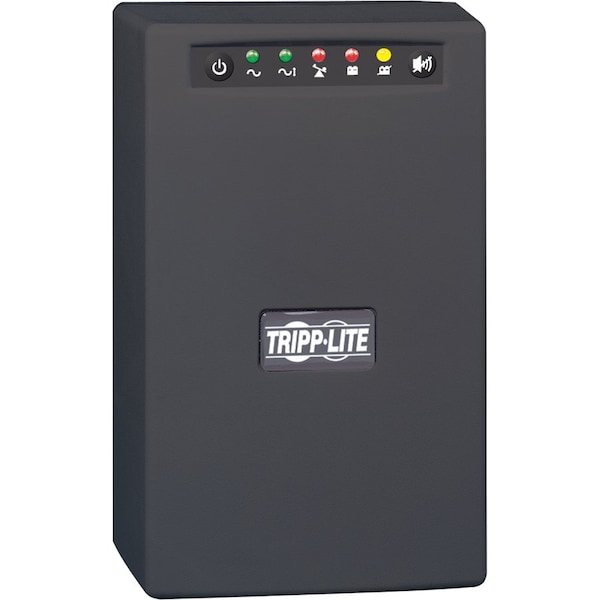

Omni VS 1500VA Tower UPS, OMNIVSINT1500XL line interactive UPS, 2 C13 to C14 interconnection cables, USB and phone line cables, Owner's manual with warranty information
Package Includes
OMNIVSINT1500XL line interactive UPS;2 C13 to C14 interconnection cables;USB and phone line cables;Owner's manual with warranty information
Product Compliance
SASO (Saudi Arabia); CE (Europe)
Product Certifications
GOST (Russia); IEC/EN 62040; IRAM (Argentina); UL 1778
UPS Applications
Home/Office Desktop; Audio/Video; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Output Capacity (VA)
1500
Output Capacity (Watts)
940
Number of Outlets - UPS
8
Input Current - Maximum
5 A
Receptacle Configuration
C13
Transfer Time - Maximum
4 msec
Audible Alarm Conditions
Low Battery
Battery Chemistry
Valve Regulated Lead Acid
Output Ports Included
USB
Manufacturer Warranty
2 yr Limited
External Battery Compatible
External Battery Pack Compatible
Includes Battery
Battery Included
Transfer Time - Minimum
2 msec
Number of Outlets - Surge Only
8
Data Line Protection
Includes Data Line Surge Protection
Visible Indicator Light Conditions
Battery Low, Overload, Power Status, Replace Battery, Voltage Regulation
Power Rating - Apparent
1.5 kVA
Power Rating - Real
940 W
Operating Temperature - Maximum
104 Degrees F
Battery Recharge Time
4.5 hr
Replacement Battery Part Number
RBC51
Operating Temperature - Minimum
32 Degrees F
Run Time - Full Load
4.5 min
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
