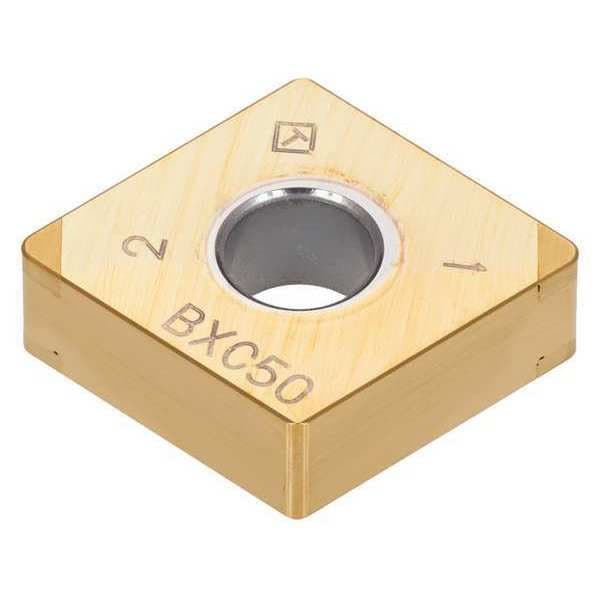

Diamond Turning Insert, Diamond, 4, CNM, 1, CBN

  • Mfr # 6818111
  • Zoro # G0177829
product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CNM
Inscribed Circle
1/2 in
Insert Size
431
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6818111
Zoro #
G0177829
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1/64 in
Nose Radius
0.016"
Insert Thickness
0.187"
Mounting Hole Dia.
0.203"
Depth of Cut
0.0197 in
Cutting Edge Length
0.0910 in
Thickness
3/16 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNM
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
BXC50
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
No
No. of Edges
4
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Hardened (H)
Mounting Style
Clamp-On
Steel (P) Compatibility
No
Hardened (H) Compatibility
Yes
Relief Angle
0 Degrees
Coating
Uncoated
Cast Iron (K) Compatibility
No
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Manufacturer Grade
BXC50
Shape
Rhombic
Chip-Breaker Style
Flat Top
Number of Cutting Edges
4
Primary Material Application ISO Code
H
Material - Machining
CBN
Finish - Machining
TiN
Measurement System
Fractional Inch
Secondary Material Application ISO Code
H
Cutting Application
Finishing
Included Angle
80 Degrees
Primary Material Application
Hardened Steel
ANSI Code
4QP-CNGA 431 BXC50
Secondary Material Application
Hardened Steel
Material
CBN
Application
Finishing
Style
CNGA

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, TiN, ANSI Code 4QP-CNGA 431 BXC50, Chip-Breaker Style Flat Top, Clearance Angle 0 Degrees
