  11. Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

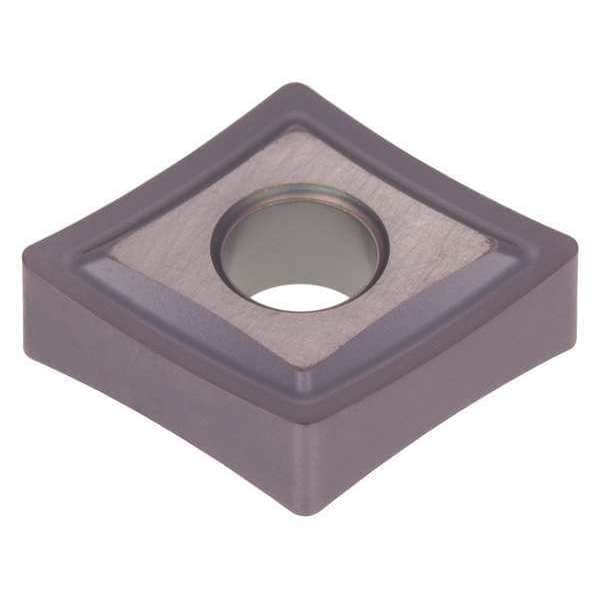

Tungaloy Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide 6811632 - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

  • Mfr # 6811632

  • Zoro # G1925528

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6811632
Zoro #
G1925528
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.187"
Nose Radius
0.031"
Thickness
3
Depth of Cut
0.0787 in
Cutting Edge Length
0.5080 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AH120
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
Cast Iron (K) Compatibility
Yes
Coating
PVD
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Steel (P), Super Alloy (S)
No. of Edges
4
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
Yes
Mounting Style
Clamp-On
Hardened (H) Compatibility
No
Cutting Application
Medium Cutting
Chip-Breaker Code
28
ANSI Code
CNMG 432 28 AH120
Material - Machining
Carbide
Included Angle
80 Degrees
Manufacturer Grade
AH120
Secondary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application ISO Code
K, M, P, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Clearance Angle
0 Degrees
Shape
Rhombic
Number of Cutting Edges
4
Measurement System
Fractional Inch
Standards
ISO 1832/AM1-1998, JIS B4120-1998
Insert Holding Type
Straight Hole
Finish - Machining
TiAlN
Primary Material Application ISO Code
K, M, P, S
Material
Carbide
Style
CNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code 28, Inscribed Circle 1/2 in, TiAlN, ANSI Code CNMG 432 28 AH120, Clearance Angle 0 Degrees
