  11. Threading Insert, V84-NV, 0.0060 in, Carbide
Ultra-Dex Usa Threading Insert, V84-NV, 0.0060 in, Carbide 913-000-523 - main

Threading Insert, V84-NV, 0.0060 in, Carbide

  • Mfr # 913-000-523

  • Zoro # G9239465

product price: $29.29
/ea
Sold in multiples of 10 for $292.90

Key Features

Insert Style
V84-NV
Insert Size
8
Grade
UD51
Corner Radius
0.0060 in
Insert Material
Carbide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
913-000-523
Zoro #
G9239465
UPC #
-
Country of Origin
United States

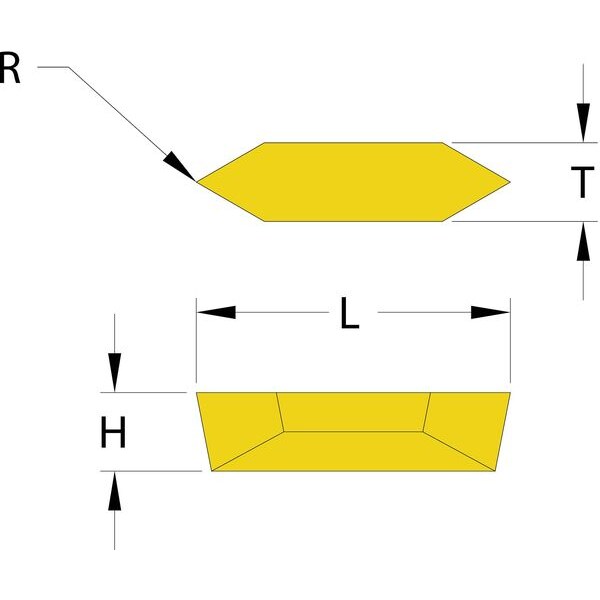

Dimensions

Insert Size
8
Corner Radius
0.0060 in
Insert Thickness
0.250"
Nose Radius
0.008"
Thickness
1/4 in
Insert Length
1 in

Details

Item
Threading Insert
Insert Style
V84-NV
Grade
UD51
Insert Material
Carbide
ISO Number
V84-NV
ANSI Number
V84-NV
Mounting Style
V-Bottom Clamp
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
No. of Edges
2
Application
General Purpose
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
Coating
TiN
For Use With
Mfr. No. VE84R/L
Super Alloy (S) Compatibility
No
Style
V84
Cutting Direction
Neutral
Hole Type
No Hole
Coating Process
CVD
Insert Holding Type
Clamp
Secondary Material Application
Cast Iron, Nickel, Stainless Steel, Titanium
Measurement System
Fractional Inch
Material - Machining
Carbide
Cutting Application
Threading
Min. Thread per Inch
5
Primary Material Application ISO Code
P
ANSI Code
V84-NV
Max. Thread Pitch
20
Thread Direction
Right Hand
Number of Cutting Edges
2
Finish - Machining
TiN
Manufacturer Grade
UD51
Secondary Material Application ISO Code
K, M, S
Included Angle
90 Degrees
Primary Material Application
Steel

Description

Threading Insert, V84-NV, Cutting Direction Neutral, Primary Material Application Steel
