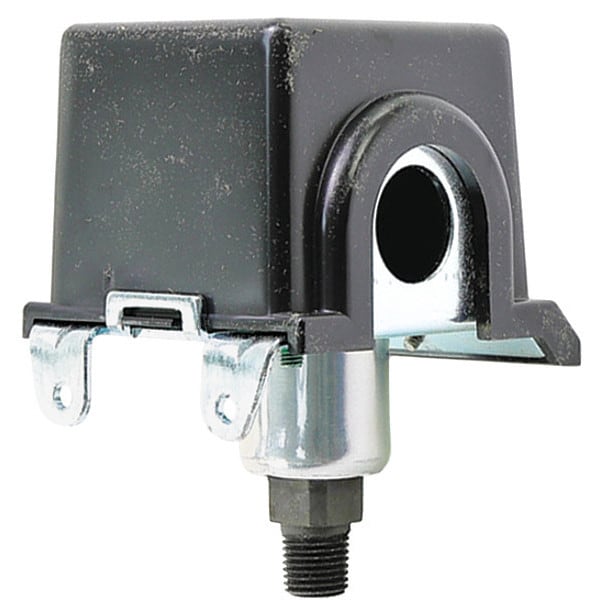

Pressure Switch
Mfr # J54-25
Zoro # G7765296
product price:Â
$
233.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
UNITED ELECTRIC
Input Voltage
125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
Product Type
Pressure Switch
Maximum Operating Temperature
160 Degrees F
Minimum Operating Temperature
-40 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- J54-25
- Zoro #
- G7765296
- UPC #
- -
- Country of Origin
- United States
- Fits Brand
- UNITED ELECTRIC
- Item
- Pressure Switch
- Input Voltage
- 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC
- Product Type
- Pressure Switch
- Maximum Operating Temperature
- 160 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Pressure Rating
- 100 psi
- Maximum Pressure Setting
- 100 psi
- Housing Type
- NEMA-1 Enclosure
- Housing Material Finish
- Black
- Electrical Connection Type
- Screw Terminals
- Contact Form
- SPDT
- Sample Line Connector Type
- NPT
- Minimum Pressure Setting
- 10 psi
- Electrical Rating
- 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive
- Mounting Hole Center to Center Distance
- 1 3/4 in
- Application
- Heating
- Standards
- CE, CUL, cULus Type J54, J54A, H54, cURus H54S, cURus J54AS, cURus J54S, Low Voltage Directive (LVD) (2006/95/EC), Pressure - UL 508, CSA C22.2 No. 14, File #E42272, Pressure Equipment Directive (PED) (97/23/EC), Temperature - UL 873, CSA C22.2 No. 24, File #E10667
- Pressure Setpoint Type
- Adjustable
- Number of Switches
- 1
- Weight
- 0.75 lb
Description
Pressure Switch, Application Heating, Contact Form SPDT, Electrical Connection Type Screw Terminals, Electrical Rating 0.03 A @ 125V DC Inductive, 0.5 A @ 125V DC Resistive, 1 A @ 24 to 30V DC Inductive, 15 A @ 125/250/480V AC Resistive, 2 A @ 24 to 30V DC Resistive, Housing Material Finish Black, Housing Type NEMA-1 Enclosure, Input Voltage 125V AC, 125V DC, 24V DC, 250V AC, 30V DC, 480V AC, Maximum Operating Temperature 160 Degrees F, Maximum Pressure Rating 100 psi
