Shop U.S. MOTORS

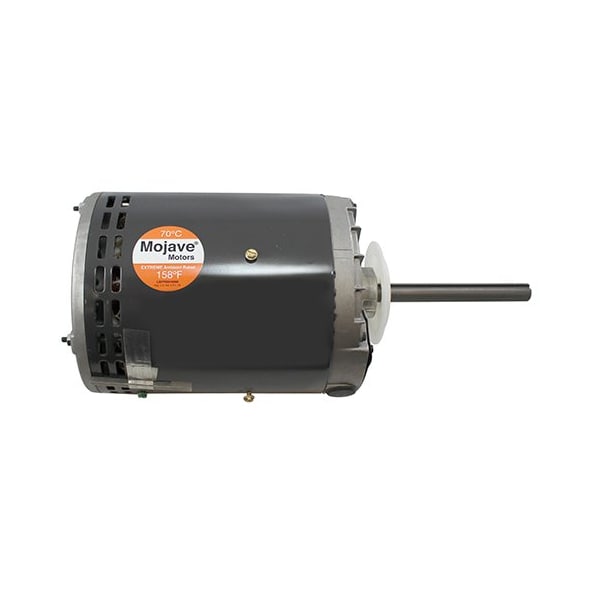

Condenser Fan Motor, 1 hp

  • Mfr # 1829H

  • Zoro # G0919309

product price:  $651.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
0-1,000
No. of Speeds
1
Voltage
575V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1829H
Zoro #
G0919309
UPC #
786382107864
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
6 5/16 in
Overall Length
16 3/4 in
Shaft Diameter
5/8 in
Wire Rope Length
16 3/4 in
Frame Size
56Z
Body Diameter
6.3 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
Phase
Three
HP
1
RPM Range
0-1,000
No. of Speeds
1
Voltage
575V AC
Motor Shaft Rotation
CW/CCW
Frame
56
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Band
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
850
Motor Application
HVAC/R
Voltage Compatibility
575V AC
Motor Service Factor
1
Standards
CSA Certified, UL Listed
Motor Shaft Design
Keyed with Single Flat
Full Load Amps
2.1 A
Ins. Class
F
Application
Commercial Condenser Fans
Duty
Air Over
Hz
60 Hz
Nameplate Service Factor @ 60 Hz
1
Capacitor Required
Capacitor Not Required
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Motor Enclosure Type
Open Drip Proof
Ambient Temperature - Maximum
70 Degrees C
Frame Material
Steel
Shaft Design
Flat, Keyed
Drive Type
Direct Drive
Full Load Current @ 60 Hz
2.1 A
Frequency
60 Hz
Number of Speeds
1
Insulation Class
F

Description

Motor,1HP,850RPM,575V,60HZ,56Z, Motor Design 3-Phase, Phase Three, 1 HP, No. of Speeds 1, Voltage 575V AC, Motor Shaft Rotation CCW, 56 Frame, Motor Enclosure Design Open Dripproof, Band Motor Mounting Type, Shaft Dia. 5/8 in, Motor Thermal Protection Auto, Max. Ambient Temp. 70 Degrees C, Nameplate RPM 850, HVAC/R, 60 Hz, Full Load Amps 2.1 A, Ins. Class F, Motor Service Factor 1, Overall Length 16 3/4 in
