Shop U.S. MOTORS

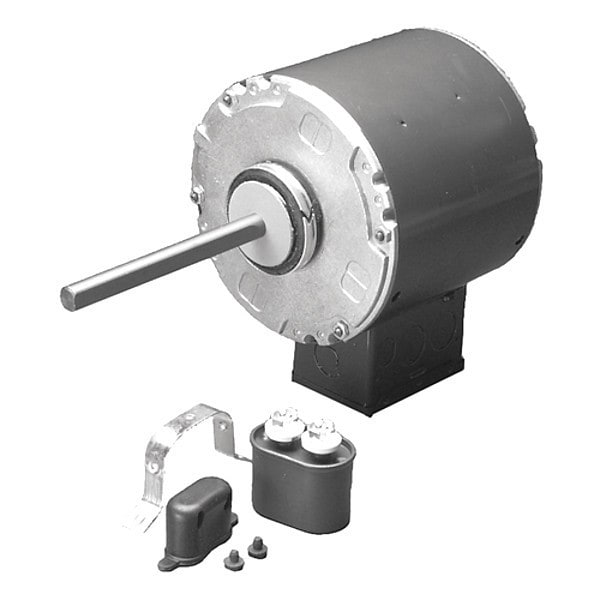

Condenser Fan Motor, 1/2 hp

  • Mfr # 2201

  • Zoro # G1929099

product price:
$
288.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,075
Voltage
208-230/460V AC
Frame
48
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2201
Zoro #
G1929099
UPC #
786382002220
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 in
Overall Length
12 25/32 in
Length Less Shaft
7 25/32 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Resilient Ring Dia.
2 1/4 in
Lead Length
5 in
Resilient Ring Diameter
2 1/4 in
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Wire Rope Length
12 25/32 in
Length
12 25/32 in

Details

HP
1/2
Nameplate RPM
1,075
Voltage
208-230/460V AC
Frame
48
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Max. Ambient Temp.
60 Degrees C
Ins. Class
B
Motor Application
HVAC/R
Item
Condenser Fan Motor
Capacitor Required
Capacitor Included
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Motor Sub Application
Condenser Fan
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Design
Permanent Split Capacitor
Duty
Continuous
Motor Mounting Position
All Angle
No. of Speeds
1
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Phase
Single
Hz
60 Hz
Motor Bearings
Ball
Full Load Amps
3.2-3.1/1.6 A
Motor Mounting Type
Ring
Motor Service Factor
1
Usable @ 200V
Not Usable at 200V
Weight
19 lb
Conduit Box Location
Interior
Nominal Efficiency
72.4 %
Usable @ 208V
Usable at 208V
Features
Double-Sealed Ball Bearings
Includes
Capacitor, Outlet Box
Duty Cycle
Continuous
For Use With
K055SYC7992012B
Part Winding Start Capable
No
Replacement For
56HZ77
10 Ft. Cord and Pull Chain Switch
No
Inverter Rated
No
Ring to Ring Center
7 3/8 in
Standards
CSA, UL
Removable Base
No
Motor Frame Material
Steel
Extended Thru-Bolts
Yes
On/Off Switch
No
Finish
Enamel
Sub Application
Condenser Fan
Manufacturers Warranty
1 yr
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Bearing Type
Ball
Inverter Rating
Not Inverter Rated
Shaft Design
Flat
Number of Speeds
1
Full Load Current @ 60 Hz
3.2-3.1/1.6 A
Mounting Position
All Angle
Product Type
Condenser Fan Motor
Drive Type
Direct Drive
Ambient Temperature - Maximum
60 Degrees C

Description

HVAC Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/2 HP, No. of Speeds 1, Voltage 208-230/460V AC, Motor Shaft Rotation CW/CCW, 48 Frame, Motor Enclosure Design Totally Enclosed Nonventilated, Ring Motor Mounting Type, Motor Mounting Position All Angle, Shaft Dia. 1/2 in, Shaft Length 5 in, Motor Thermal Protection Auto, Max. Ambient Temp. 60 Degrees C, Nameplate RPM 1,075, HVAC/R, Condenser Fan, 60 Hz, Full Load Amps 3.2-3.1/1.6 A, Ins. Class B, Motor Service Factor 1
