Shop U.S. MOTORS

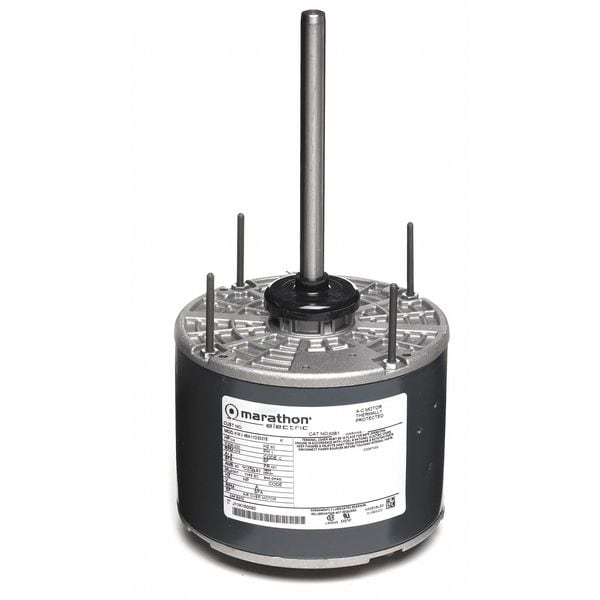

Condenser Fan Motor, 1/3 hp

  • Mfr # 6880
  • Zoro # G0215515
product price:
$
121.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6880
Zoro #
G0215515
UPC #
786382006488
Country of Origin
Mexico

Dimensions

Lead Length
30 in
Overall Length
10 3/8 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Length Less Shaft
5 3/8 in
Body Dia.
5 5/8 in
Shaft Length
5 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 in
Bolt Circle Diameter
5 1/8 in
Frame Size
48Y
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Ins. Class
B
Motor Sub Application
Condenser Fan
Max. Ambient Temp.
60 Degrees C
Capacitor Required
Capacitor Not Included
Standards
CSA (156060), UL (E22922)
Nameplate RPM
1,075
Full Load Amps
2.2 A
Item
Condenser Fan Motor
Duty
Continuous
Motor Mounting Position
All Angle
Ring to Ring Center
4 7/8 in
Motor Shaft Design
Double-Flat
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Stud Quantity
4
Motor Bearings
Ball
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nominal Efficiency
69 %
Hz
60 Hz
Motor Application
HVAC/R
Motor Service Factor
1
Duty Cycle
Continuous
Bearing Protection
Water Slingers
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Insulation Class
B
Bearing Type
Ball
Shaft Design
Double Flat
Full Load Current @ 60 Hz
2.2 A
Drive Type
Direct Drive
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Frame Material
Steel
Mounting Position
All Angle
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Sub Application
Condenser Fan
Ambient Temperature - Maximum
60 Degrees C

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.2 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
