Shop U.S. MOTORS

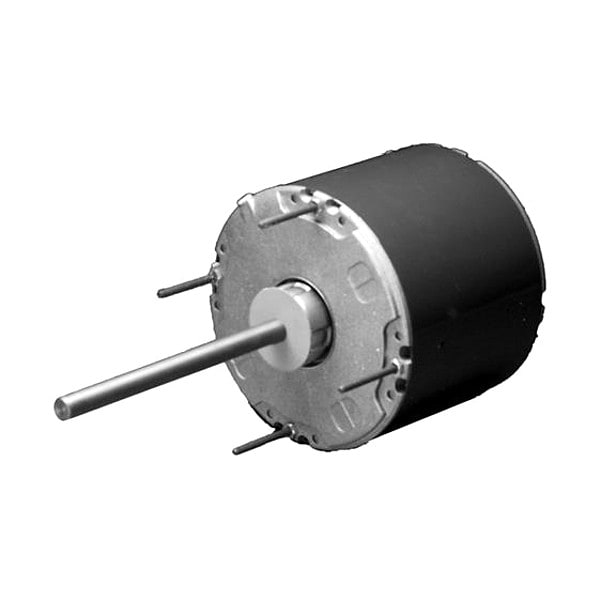

Condenser Fan Motor, 3/4 hp

  • Mfr # 3097

  • Zoro # G0214970

product price:
$
165.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3097
Zoro #
G0214970
UPC #
786382002794
Country of Origin
Mexico

Dimensions

Lead Length
30 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/8 in
Overall Length
12 1/8 in
Shaft Length
5 in
Shaft Dia.
1/2 in
Length Less Shaft
7 1/8 in
Body Dia.
5 5/8 in
Mounting Stud Length
1 in
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Frame Size
48Y
Wire Rope Length
12 1/8 in
Length
12 1/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Stud
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
74.3 %
Motor Mounting Position
Horizontal or Vertical Shaft Up
Item
Condenser Fan Motor
Full Load Amps
4.8 A
Duty
Continuous
Motor Sub Application
Condenser Fan
Motor Shaft Design
Double-Flat
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Stud Quantity
4
Motor Bearings
Ball
Standards
CSA (156060), UL (E22922)
Ring to Ring Center
6 5/8 in
Capacitor Required
Capacitor Not Included
Motor Application
HVAC/R
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
Motor Service Factor
1
Hz
60 Hz
Nameplate RPM
1,075
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Sub Application
Condenser Fan
Drive Type
Direct Drive
Shaft Design
Double Flat
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Full Load Current @ 60 Hz
4.8 A
Number of Speeds
1
Mounting Position
Horizontal/Vertical Shaft Up
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Ball
Frequency
60 Hz

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 4.8 A Full Load Amps, 48Y Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Stud
