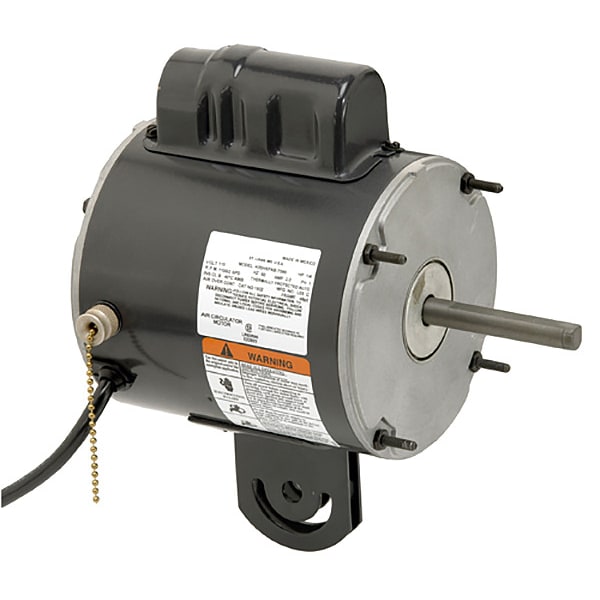

Condenser Fan Motor, 1/4 hp

  • Mfr # 1917
  • Zoro # G1930368
product price:
$
261.99
/ea
Free Shipping & Returns

Key Features

HP
1/4
Nameplate RPM
1,075
Voltage
115V AC
Frame
48YZ
Shaft Dia.
1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1917
Zoro #
G1930368
UPC #
786382001971
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
2 1/2 in
Body Dia.
5 5/8 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
8 1/32 in
Overall Length
10 17/32 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1/2 in
Stud Size
#10-32
Shaft Diameter
1/2 in
Frame Size
48YZ
Bolt Circle Diameter
5 1/8 in
Mounting Stud Thread Size
#10-32
Body Diameter
5.6 in
Wire Rope Length
10 17/32 in
Length
10 17/32 in

Details

HP
1/4
Nameplate RPM
1,075
Voltage
115V AC
Frame
48YZ
Motor Shaft Rotation
CW/CCW
RPM Range
1,001-1,100
Motor Bearings
Ball
Phase
Single
Duty
Continuous
Motor Service Factor
1
Full Load Amps
4.2 A
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Motor Application
HVAC/R
Hz
60 Hz
Ins. Class
A
Capacitor Required
Capacitor Included
Motor Sub Application
Direct Drive Fan/Blower
No. of Speeds
2
Motor Mounting Position
Horizontal or Vertical Shaft Up
Motor Shaft Design
Flat
Item
Condenser Fan Motor
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Yoke
Motor Thermal Protection
Auto
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Includes
Capacitor Mounted with Cover
Features
Studs for Mounting Fan Guard
Weight
17 lb
Usable @ 200V
Not Usable at 200V
Stud Quantity
4
Duty Cycle
Continuous
Nominal Efficiency
60.8 %
On/Off Switch
No
10 Ft. Cord and Pull Chain Switch
No
Standards
CSA, UL
Part Winding Start Capable
No
Replacement For
56JA29
Removable Base
No
Finish
Enamel
For Use With
K055JWR9666022B
Inverter Rated
No
Extended Thru-Bolts
Yes
Full Load Current @ 60 Hz
4.2 A
Efficiency Rating
Standard Efficiency (IE1)
Drive Type
Direct Drive
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
2
Frequency
60 Hz
Inverter Rating
Not Inverter Rated
Bearing Type
Ball
Mounting Position
Horizontal/Vertical Shaft Up
Shaft Design
Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Nameplate Service Factor @ 60 Hz
1
Insulation Class
A
Sub Application
Condenser Fan
Manufacturers Warranty
1 yr
Frame Material
Steel

Description

HVAC Motor, Motor Design Permanent Split Capacitor, Phase Single, 1/4 HP, No. of Speeds 2, Voltage 115V AC, Motor Shaft Rotation CW/CCW, 48YZ Frame, Motor Enclosure Design Totally Enclosed Air-Over, Yoke Motor Mounting Type, Motor Mounting Position Horizontal or Vertical Shaft Up, Shaft Dia. 1/2 in, Shaft Length 2 1/2 in, Motor Thermal Protection Auto, Max. Ambient Temp. 40 Degrees C, Nameplate RPM 1,075, HVAC/R, Direct Drive Fan/Blower, 60 Hz, Full Load Amps 4.2 A, Ins. Class A
