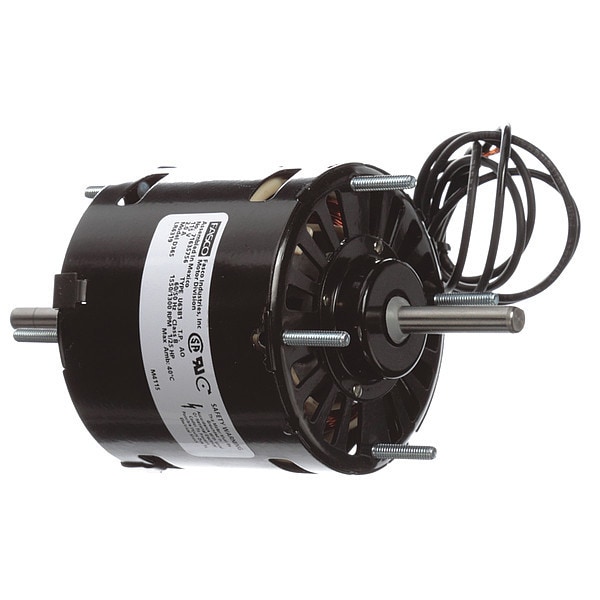

HVAC 3.3 In Motor, 1/25 HP, 115V, CW/LE

  • Mfr # D365

  • Zoro # G5301606

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D365
Zoro #
G5301606
UPC #
663001427636
Country of Origin
Mexico
Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
Standards
CSA Certified, UL Recognized
Number of Shafts
2
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Phase
Single
Mounting Stud Location
4/Both Ends
Motor Mounting Type
Ring/Stud
Frame
3.3
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Motor Shaft Rotation
CW/CCW
Motor Bearings
Sleeve
Motor Thermal Protection
Auto
Motor Design
Shaded Pole
Application
Fan/Blower
Hz
60 Hz
Item
Fan and Blower Motor
Ins. Class
B
Motor Service Factor
1
Duty
Continuous
Motor Application
HVAC/R
Mounting Pattern
2-7/8 x 2-7/8
Full Load Amps
2 A
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Weight
3 lb
Mounting Holes
(8) #8-32
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
RPM @ 50Hz
1,300 RPM
Mounting
Stud
Drive Type
Direct Drive
Frame Material
Steel
Shaft Design
Flat
Product Type
Fan and Blower Motor
Frequency
60 Hz
Full Load Current @ 60 Hz
2.0 A
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Open Air Over
Nameplate RPM @ 50 Hz
1,300 RPM
Bearing Type
Sleeve
Sub Application
General Purpose
Wattage
30 W
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 2.0 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
