Shop U.S. MOTORS

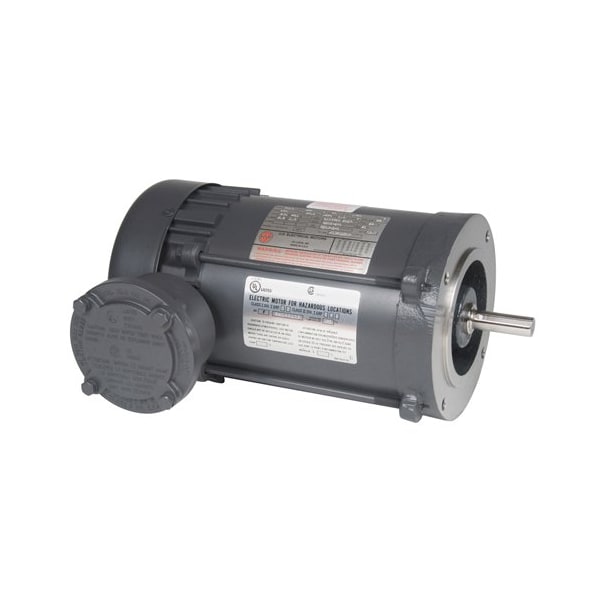

HazardousLocationMotor, 1hp, 1725RPM

  • Mfr # XS1P2ACR
  • Zoro # G1940956
product price:
$
638.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Nameplate RPM
1,725 RPM
Voltage
208V AC to 230V AC, 460V AC
Frame
143TC
Shaft Dia.
7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XS1P2ACR
Zoro #
G1940956
UPC #
786382090081
Country of Origin
Mexico

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Overall Length
15 5/16 in
Manufacturers Warranty Length
3 yr
Length Less Shaft
13 3/16 in
Shaft Diameter
7/8 in
Frame Size
143TC
Wire Rope Length
15 5/16 in
Length
15 5/16 in

Details

HP
1 hp
Nameplate RPM
1,725 RPM
Voltage
208V AC to 230V AC, 460V AC
Frame
143TC
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Design
Three-Phase
Motor Thermal Protection
T-Stat
Motor Mounting Type
C-Face
Motor Shaft Design
Keyed
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Hz
60 Hz
Item
Hazardous Location Motor
Motor Mounting Position
Horizontal
Motor Application
Hazardous Location
Motor Bearings
Sealed
No. of Speeds
1
Phase
Three
Full Load Amps
3.3-3.3/1.6 A
Motor Sub Application
Pumps; Fans; Compressors; Conveyors; Tools Located in Hazardous Locations
Usable @ 200V
Not Usable at 200V
Hazardous Location Division
Division I
Conduit Box Location
Exterior
Includes
Aluminum End Brackets, Conduit Box
Nominal Efficiency
85.5 %
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Hazardous Location Class
Class I, Class II
Standards
CSA Certified, UL Listed
NEMA Design
B
Weight
42 lb
Temp. Code
T3C
Duty Cycle
Continuous
Hazardous Location Group
Group C, Group D, Group E, Group F, Group G
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Mounting Position
Horizontal
Full Load Current @ 60 Hz
3.3-3.3/1.6 A
Frame Material
Steel
Insulation Class
B
NEMA Design Class
B
Shaft Design
Keyed
Number of Speeds
1
Temperature Code
T3C
Application
Hazardous Location
Product Type
Hazardous Location Motor
Manufacturers Warranty
3 yr

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.3-3.3/1.6 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
