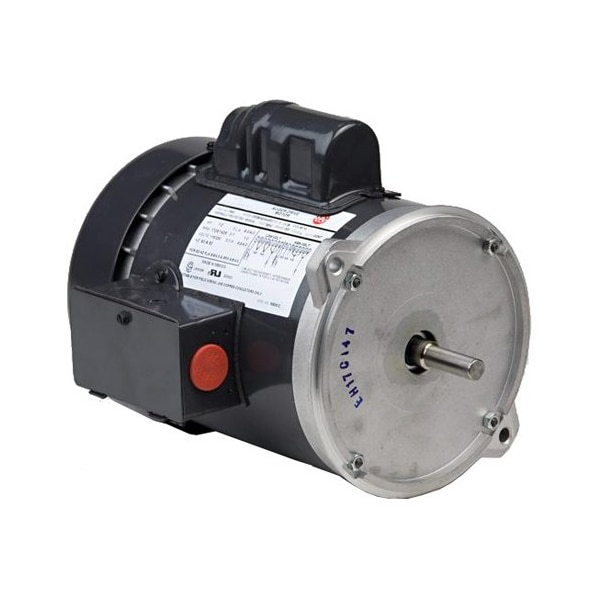

Farm Duty Motor, 3-Phase, 1/3 HP, 190/380V; 208-230V/460V, 1,725 Nameplate RPM, 56Y Frame
Mfr # FD13SM2DZYR
Zoro # G0408080
product price: $394.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
Phase
Three
HP
1/3
Voltage
190/380V; 208-230V/460V
Frame
56Y
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
FD13SM2DZYR
Zoro #
G0408080
UPC #
786382096908
Country of Origin
Mexico
Dimensions
Length Less Shaft
9 11/16 in
Overall Length
11 1/4 in
Shaft Length
1 1/2 in
Shaft Dia.
1/2 in
Description
Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 1.8-2.0/1.0 A, 2.0/1.0 A, 56Y Frame, Usable @ 208V Usable at 208V, 60/50 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Flange, Motor Frame Material Steel
