  6. General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 230/460V AC, 1,755 Nameplate RPM

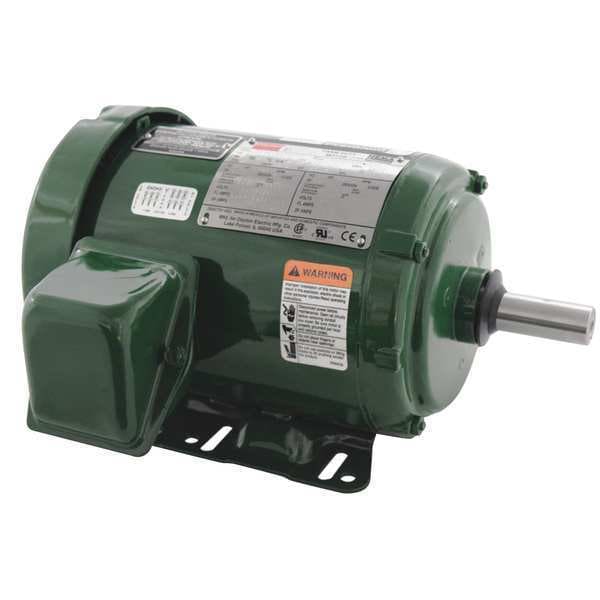

Dayton General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 230/460V AC, 1,755 Nameplate RPM 35Z917 - main

General Purpose Farm Duty Motor, 3-Phase, 1 1/2 HP, 230/460V AC, 1,755 Nameplate RPM

  • Mfr # 35Z917

  • Zoro # G4989241

product price:  $819.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143-5T/56HZT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
35Z917
Zoro #
G4989241
UPC #
190735274163
Country of Origin
Mexico

Dimensions

Shaft Length
2 3/8 in
Shaft Dia.
7/8 in
Length Less Shaft
10 5/8 in
Overall Length
13 in

Details

Item
General Purpose Farm Duty Motor
Motor Design
3-Phase
Phase
Three
HP
1 1/2
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143-5T/56HZT
Motor Service Factor
1.25
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,755
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
General Purpose Farm
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258525), UL Recognized (E47479)
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Finish
Dayton Gray
Includes
Shaft Key, Shaft Slinger, Gasketed Conduit Box
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency
86.5 %
Duty
Continuous
Max. Ambient Temperature
40 Degrees C
Motor Efficiency Group
NEMA Premium Efficient
Full Load Amps
4.3/2.1 A
Frame Material
Rolled steel
Ins. Class
F
Hz
60/50 Hz
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous
Application
Farm Duty

Description

Farm Duty Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.3/2.1 A, 143-5T Frame, 60/50 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
