  11. Motor, 1/3 HP, 56C Frame, Three Phase

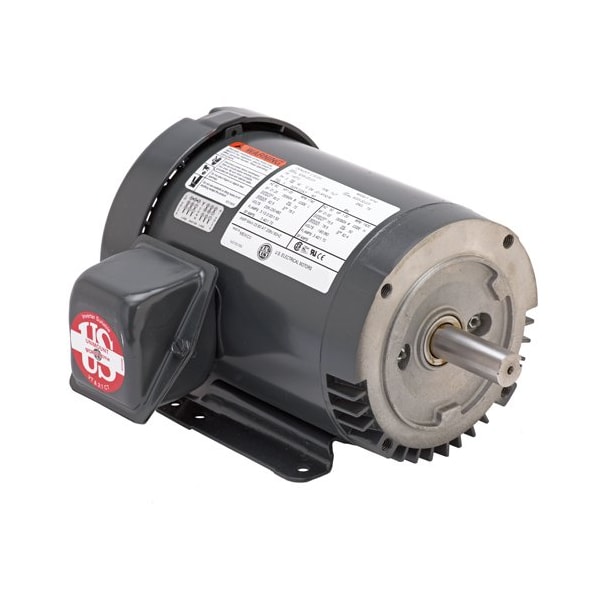

U.S. Motors Motor, 1/3 HP, 56C Frame, Three Phase U13P2GC - main

Motor, 1/3 HP, 56C Frame, Three Phase

  • Mfr # U13P2GC

  • Zoro # G1930401

product price: $285.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1750 rpm
Voltage
575
Frame
56C
Shaft Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
U13P2GC
Zoro #
G1930401
UPC #
786382129132
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Body Dia.
7.3 in
Length Less Shaft
8 3/4 in
Overall Length
10 13/16 in
Height
7 3/16 in
Body Diameter
7.3 in

Details

HP
1/3
Nameplate RPM
1750 rpm
Voltage
575
Frame
56C
Motor Shaft Rotation
CW/CCW
RPM Range
1,701-1,800
Voltage Compatibility
575V AC
Motor Thermal Protection
None
Full Load Amps
0.5 A
Motor Application
General Application
Ins. Class
F
No. of Speeds
1
Motor Design
Three-Phase
Motor Service Factor
1.25
Item
Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Hz
60 Hz
Motor Shaft Design
Keyed
Max. Ambient Temp.
40 Degrees C
Motor Sub Application
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment, General Purpose
Motor Mounting Position
Horizontal
Phase
Three
Max. SF Amps
0.5 A
Conduit Box Location
Exterior
Weight
30 lb
Bearing Protection
Shaft Shields
Usable @ 208V
No
Conduit Box Position
F1
Standards
CE, CSA
Nominal Efficiency
74 %
Motor Frame Material
Steel
Duty Cycle
Continuous
Usable @ 200V
No
Inverter Rated
No

Description

Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/3 HP, Nameplate RPM 1750 rpm, Frame 56C, Voltage 575, 60 Hz Hz, Three Phase, Full Load Amps 0.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, 1,701-1,800, CE, CSA
