No Product Image Available

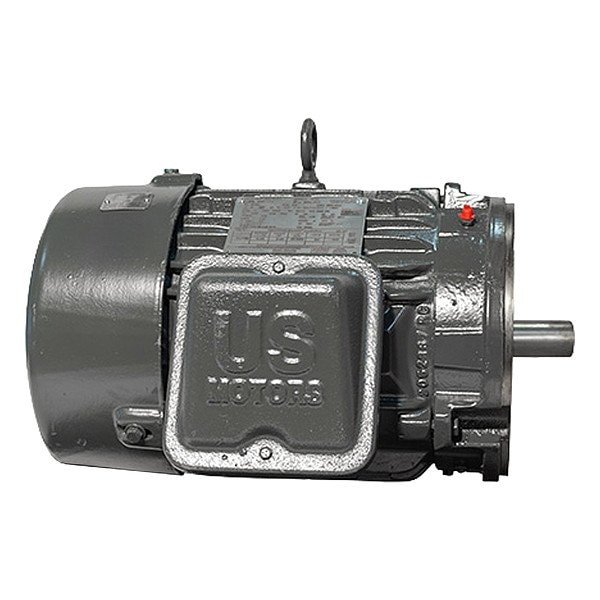

Motor, 184TC, Rigid Base

  • Mfr # GF53

  • Zoro # G023354767

product price:  $838.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Number of Speeds
1
Nominal Efficiency
89.5 %
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
GF53
Zoro #
G023354767
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
184TC
Overall Length
17 3/16 in

Details

Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
Number of Speeds
1
Nominal Efficiency
89.5 %
Frequency
60 Hz
Bearing Lubrication Type
Regreasable
NEMA Design Class
B
Standards
CE, CSA, ISO9001:2015, UL, United States Department of Energy
Frame Material
Cast Iron
Full Load Current @ 60 Hz
6.3 A
Inverter Rating
Inverter Rated
Nameplate Voltage @ 50 Hz
190/380V AC
Manufacturers Warranty
5 yr
Item
Motor
Variable Torque Rating
20:1
Motor Design
Three-Phase
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Nameplate RPM @ 50 Hz
2,850 RPM
Constant Torque Rating
5:1
Phase
Three

Description

Motor, Three-Phase, Three Phase, Motor Thermal Protection None, Nominal Efficiency 89.5 Percent, CE, CSA, ISO9001:2015, UL, United States Department of Energy
