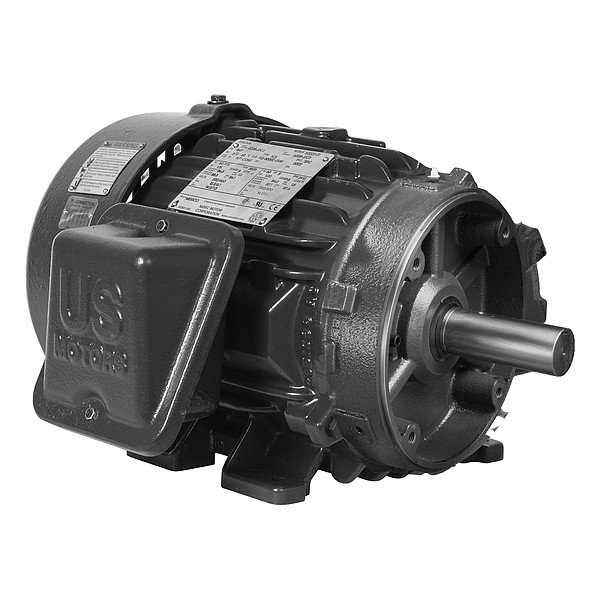

Motor, 213TC, Rigid Base; C-Face

  • Mfr # HU58

  • Zoro # G223360643

product price:  $1,010.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Motor Design
Three-Phase
Mounting Position
Horizontal
Insulation Class
F
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HU58
Zoro #
G223360643
UPC #
-
Country of Origin
Mexico

Dimensions

Frame Size
213TC
Overall Length
20 3/8 in

Details

Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
B
Motor Design
Three-Phase
Mounting Position
Horizontal
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Usable @ 208V
Not Usable at 208V
Nameplate RPM @ 50 Hz
985/965/970/975 RPM
Inverter Rating
Inverter Rated
Frequency
60 Hz
Phase
Three
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Usable @ 200V
Not Usable at 200V
Standards
CE, CSA, ISO 9001:2015, UL, United States Department of Energy
Item
Motor
Constant Torque Rating
4:1
Number of Speeds
1
Manufacturers Warranty
42 mo
Bearing Lubrication Type
Regreasable
Full Load Current @ 60 Hz
18.1/9 A
Nominal Efficiency
89.5 %
Variable Torque Rating
20:1
Efficiency Rating
NEMA Premium Efficiency
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Cast Iron

Description

Motor, Three-Phase, Three Phase, Motor Thermal Protection None, Nominal Efficiency 89.5 Percent, CE, CSA, ISO 9001:2015, UL, United States Department of Energy
