Shop U.S. MOTORS

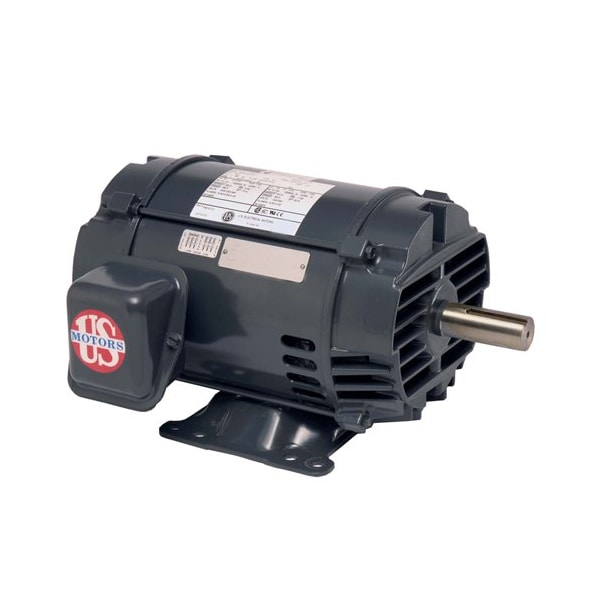

Motor, 3PH, 20HP, 3600,200/400V, EFF 90.2

  • Mfr # FF20E1X

  • Zoro # G0402925

product price:
$
1,605.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
20
Nameplate RPM
3,535
Voltage
200/400V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FF20E1X
Zoro #
G0402925
UPC #
786382096366
Country of Origin
Mexico
Item
Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
20
Nameplate RPM
3,535
Voltage
200/400V AC
Frame
254T
Ins. Class
F
Motor Service Factor
1.15
Motor Mounting Position
Horizontal
Hz
60 Hz
Standards
UL
Motor Application
Pump
Motor Sub Application
Fire Pump
CC Number
CC030A
Full Load Amps
54.0/27.1 A
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Nominal Efficiency
90.2 %
Phase
Three
Part Winding Start Capable
Yes
Bearing Protection
Double Shields
Motor Frame Material
Steel
Conduit Box Position
F1
Regreasable Bearings
Regreasable Bearings
Weight
150 lb
Usable @ 200V
Usable at 200V
Max. SF Amps
63.0/32.0
NEMA Design
B
Duty Cycle
Continuous
Insulation Class
F
Service Factor Current
63/32 A
Shaft Design
Keyed
Manufacturers Warranty
162 mo
Mounting Position
Horizontal
Product Type
Pump Motor
Frequency
60 Hz
Full Load Current @ 60 Hz
54.0/27.1 A
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Application
Pump
Ambient Temperature - Maximum
40 Degrees C
Bearing Lubrication Type
Regreasable Bearings
Sub Application
Fire Pump
NEMA Design Class
B
Number of Speeds
1
Frame Material
Steel
Usable @ 208V
Not Usable at 208V

Description

Pump Motor, Bearing Protection Double Shields, Body Dia. 11.1 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 254T, Hz 60 Hz, Full Load Amps 54.0/27.1, Height 12 15/16 in, HP 20, Ins. Class F, Length Less Shaft 16 5/8 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 63.0/32.0, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
