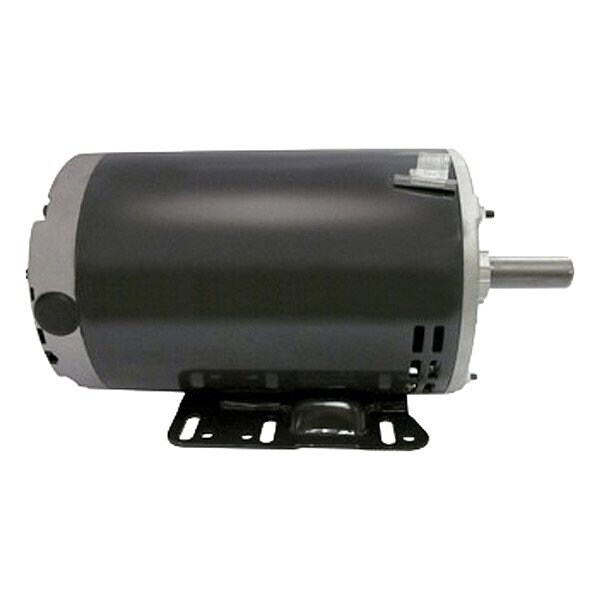

Motor, 56HZ, Rigid Base
- Mfr # P063FMZ1700015B
- Zoro # G523355769
product price:Â
$
468.99
/ea
Free Shipping & Returns
Key Features
Phase
Three
Full Load Current @ 60 Hz
4.8 A /2.4 A
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Shaft Diameter
7/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- P063FMZ1700015B
- Zoro #
- G523355769
- UPC #
- -
- Country of Origin
- Mexico
- Phase
- Three
- Full Load Current @ 60 Hz
- 4.8 A /2.4 A
- Ambient Temperature - Maximum
- 40 Degrees C
- Bearing Type
- Ball
- Number of Speeds
- 1
- Duty Cycle
- Continuous
- Insulation Class
- B
- Standards
- CE, CSA, ISO9001:2015, UL, United States Department of Energy
- Efficiency Rating
- NEMA Premium Efficiency
- Motor Design
- Three-Phase
- Motor Enclosure Type
- Open Drip Proof
- Item
- Motor
- Frequency
- 60 Hz
- Product Type
- General Purpose Motor
- Nameplate Service Factor @ 60 Hz
- 1.15
- Nameplate RPM @ 60 Hz
- 1,725 RPM
- Nameplate Voltage @ 60 Hz
- 200-230/460V AC
- Nameplate Horsepower @ 60 Hz
- 1 1/2 hp
- Motor Shaft Rotation
- CW/CCW
Dimensions
- Shaft Diameter
- 7/8 in
- Shaft Length
- 2 5/16 in
- Frame Size
- 56HZ
- Wire Rope Length
- 12 7/8 in
- Length Less Shaft
- 10 5/8 in
- Overall Length
- 12 7/8 in
- Length
- 12 7/8 in
Description
Motor, Three-Phase, Three Phase, Motor Thermal Protection Auto, CW/CCW Motor Shaft Rotation, CE, CSA, ISO9001:2015, UL, United States Department of Energy
