Shop U.S. MOTORS

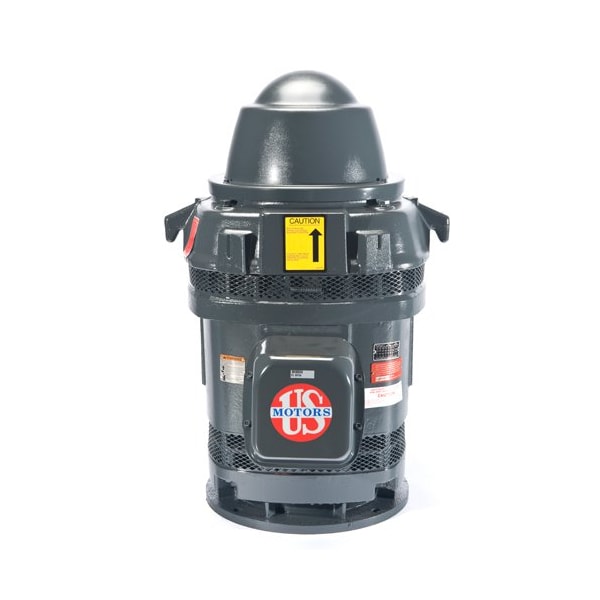

Pool and Spa Pump Motor, 3-Phase, 25 HP, 324 Frame, 1,190 Nameplate RPM

  • Mfr # HO25P3BLG
  • Zoro # G7724498
product price:
$
7,483.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Weather Protected Type I
HP
25
RPM Range
1,101-1,200
Motor Service Factor
1.15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HO25P3BLG
Zoro #
G7724498
UPC #
786382113902
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
11/16 in
Body Dia.
16.5 in
Overall Length
21 11/16 in
Length Less Shaft
28 1/4 in
Height
33 5/16 in
Frame Size
324
Bolt Circle Diameter
11/16 in
Body Diameter
16.5 in
Wire Rope Length
21 11/16 in
Length
21 11/16 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Weather Protected Type I
HP
25
RPM Range
1,101-1,200
Motor Service Factor
1.15
Nameplate RPM
1,190
Frame
324
Voltage
230V AC, 460V AC
Phase
Three
Full Load Amps
62.0/31.0 A
Nominal Efficiency
93 %
Hz
60 Hz
Motor Application
Pump
Motor Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Vertical
Ins. Class
F
Motor Sub Application
Mix Flow Pump, Propeller Pumps, Turbine
No. of Speeds
1
Duty Cycle
Continuous
Part Winding Start Capable
No
Weight
635 lb
Max. SF Amps
71.0/36.0
Bearing Protection
Shaft Shields
Thrust Rating
6,700 lb
Ambient Temperature - Maximum
40 Degrees C
Number of Wires
9
Full Load Current @ 60 Hz
62.0/31.0 A
Application
Pump
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Includes Low Temperature Monitor
Low Temperature Monitor Not Included
Bearing Type
Ball
Insulation Class
F
Efficiency Rating
Premium Efficiency (IE3)
Bearing Protection Type
Shaft Shields
Product Type
Pump Motor
Service Factor Current
71.0/36.0 A
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15

Description

Pool and Spa Pump Motor, Bearing Protection Shaft Shields, Body Dia. 16.5 in, Bolt Circle Dia. 11/16 in, Duty Cycle Continuous, Frame 324, Hz 60 Hz, Full Load Amps 62.0/31.0, Height 33 5/16 in, HP 25, Ins. Class F, Length Less Shaft 28 1/4 in, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 71.0/36.0, Motor Application Pump, Motor Design Three-Phase, Motor Efficiency Group Premium Efficient
