Shop U.S. MOTORS

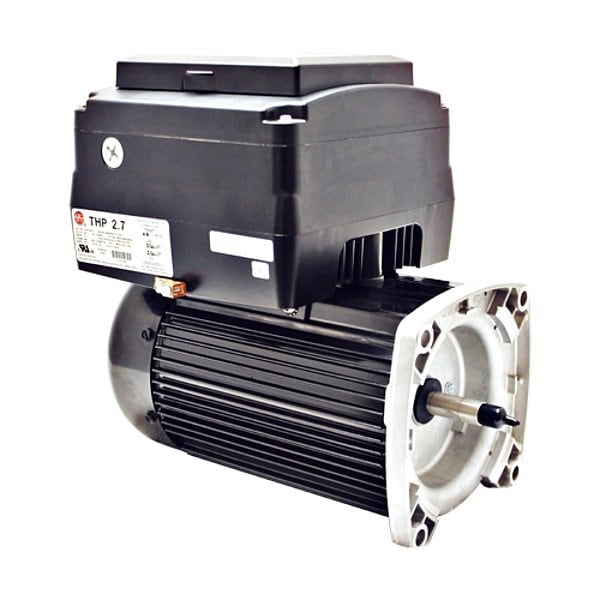

Pool and Spa Pump Motor, Flange, 48Y

  • Mfr # M055UFK0229013J

  • Zoro # G116601730

product price:  $657.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
2.25
Nameplate RPM
3,450
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M055UFK0229013J
Zoro #
G116601730
UPC #
786382135119
Country of Origin
Mexico

Dimensions

Shaft Length
7/8 in
Shaft Dia.
5/8 in
Body Diameter
6.5 in
Shaft Diameter
5/8 in
Frame Size
48Y

Details

Item
Variable Speed Pool Pump Motor
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
2.25
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
230V AC
Phase
Single
Motor Mounting Type
Flange
Full Load Amps
9.5 A
Motor Frame Material
Steel
Ins. Class
F
Inverter Rated
Inverter Rated
Max. Ambient Temp.
50 Degrees C
Weight
35 lb
Standards
UL (E255002)
Hz
60/50 Hz
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Motor Application
Pump
Motor Sub Application
Pool and Spa Pump
Product Type
Pump Motor
Insulation Class
F
Full Load Current @ 60 Hz
9.5 A
Application
Pump
Bearing Type
Ball
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1
User Interface Type
Back Lit
Sub Application
Pool and Spa Pump
Number of Daily Schedules
7
Mounting Position
Horizontal
External Control Type
Modbus & Low Voltage Connection to Pool Control Systems
Features
Adjustable Priming Time & Speed / Menu Keypad Lockout
Ambient Temperature - Maximum
50 Degrees C
Includes User Interface
User Interface Included
Motor Enclosure Type
Totally Enclosed Fan Cooled
Series
Neptune(R)
Efficiency Rating
Standard Efficiency (IE1)
Control Connector Configuration
4-Pin
For Motor Replacement
Single-Speed Pump Motor
Frequency
60/50 Hz
ECM Motor Type
Constant RPM
Includes Low Temperature Monitor
Low Temperature Monitor Included

Description

Variable Speed Pool Pump Motor, Frame 48Y, Hz 60/50 Hz, Full Load Amps 9.5, HP 2.25, Ins. Class F, Inverter Rated Yes, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Design ECM, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA
