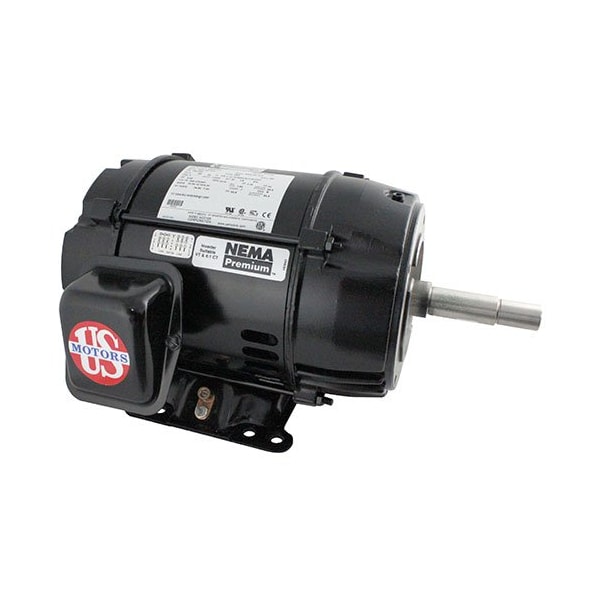

Pool and Spa Pump Motor, 3-Phase, 5 HP, 182JMZ Frame, 3,450/2,850 Nameplate RPM

  • Mfr # EEQK500
  • Zoro # G7731014
product price:
$
958.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
5
Motor Service Factor
1.15
RPM Range
3,001-3,600
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EEQK500
Zoro #
G7731014
UPC #
786382097073
Country of Origin
Mexico

Dimensions

Body Dia.
8.5 in
Length Less Shaft
11 7/8 in
Shaft Length
4 1/4 in
Bolt Circle Dia.
5 7/8 in
Shaft Dia.
1 in
Manufacturers Warranty Length
24 mo
Overall Length
16 1/8 in
Height
8 1/2 in
Shaft Diameter
1 in
Body Diameter
8.5 in
Frame Size
182
Wire Rope Length
16 1/8 in
Length
16 1/8 in

Details

Item
Pool and Spa Pump Motor
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
HP
5
Motor Service Factor
1.15
RPM Range
3,001-3,600
Nameplate RPM
3,450/2,850
Frame
182JMZ
Motor Shaft Rotation
CW/CCW
Voltage
115V AC, 208V AC to 230V AC
Phase
Three
Motor Mounting Type
Face
Full Load Amps
13.5-12.3/6.2 A
No. of Speeds
1
Motor Mounting Position
Horizontal
Motor Thermal Protection
Auto
Max. Ambient Temp.
40 Degrees C
CC Number
CC030A
Hz
60 Hz
NEMA Design
B
Ins. Class
F
Nominal Efficiency
89.5 %
Motor Application
Pump
Inverter Rated
Inverter Rated
Standards
CSA, ENERGY cURus
Shaft Material
Stainless Steel
Conduit Box Position
F1
Inverter Rating
20:1 (VT), 4:1 (CT)
Voltage @ 50Hz
208-230/460V
Weight
50 lb
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Max. SF Amps
0-14.0/7.0
Service Factor @ 50Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)
Mounting Position
Horizontal
Application
Pump
Service Factor Current
14/7 A
Usable @ 200V
Not Usable at 200V
Manufacturers Warranty
248 mo
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Sub Application
Pool and Spa Pump
Nameplate Service Factor @ 60 Hz
1.15
Bearing Lubrication Type
Permanently Lubricated Bearings
Bearing Type
Ball
Series
PENTAIR EQ
Nameplate Voltage @ 50 Hz
208-230/460V AC
Full Load Current @ 60 Hz
12.3/6.2 A
Product Type
Pump Motor
Frequency
60 Hz
NEMA Design Class
B
Number of Speeds
1
Nameplate Service Factor @ 50 Hz
1.15
Motor Enclosure Type
Open Drip Proof

Description

Pool and Spa Pump Motor, Body Dia. 8.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC030A, Conduit Box Position F1, Duty Cycle Continuous, Frame 182JMZ, Hz 60 Hz, Full Load Amps 13.5-12.3/6.2, Height 8 1/2 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 20:1 (VT), 4:1 (CT), Length Less Shaft 11 7/8 in, Manufacturers Warranty Length 24 mo, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 0-14.0/7.0, Motor Application Pump, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
