Shop U.S. MOTORS

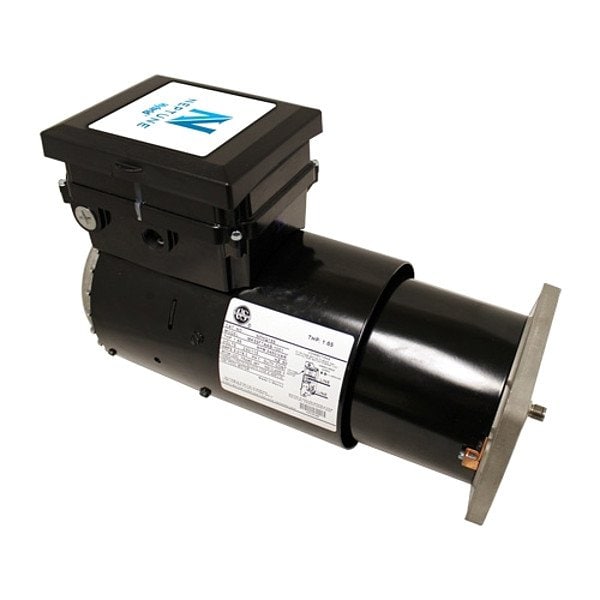

Pool and Spa Pump Motor, Flange, 48Y

  • Mfr # MK55AAB1001013J

  • Zoro # G016601762

product price:
$
467.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1.65
Nameplate RPM
3,450
Frame
48Y
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MK55AAB1001013J
Zoro #
G016601762
UPC #
786382151942
Country of Origin
Mexico

Dimensions

Shaft Length
7/8 in
Shaft Dia.
5/8 in
Frame Size
48Y
Shaft Diameter
5/8 in
Body Diameter
6.5 in

Details

Item
Variable Speed Pool Pump Motor
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1.65
Nameplate RPM
3,450
Frame
48Y
Motor Shaft Rotation
CCWSE
Voltage
115/230V AC
Phase
Single
Full Load Amps
9.5 A
Motor Mounting Type
Flange
Max. Ambient Temp.
50 Degrees C
Standards
UL (E255002)
Inverter Rated
Inverter Rated
Hz
60/50 Hz
Weight
36 lb
Motor Thermal Protection
Auto
Motor Application
Pump
Motor Frame Material
Steel
Ins. Class
F
Motor Mounting Position
Horizontal
Motor Sub Application
Pool and Spa Pump
Frame Material
Steel
Bearing Type
Ball
ECM Motor Type
Constant RPM
User Interface Type
Back Lit
Motor Enclosure Type
Totally Enclosed Fan Cooled
Series
Neptune(R)
Includes User Interface
User Interface Included
Features
Adjustable Priming Time & Speed / Menu Keypad Lockout
Insulation Class
F
Application
Pump
Number of Daily Schedules
7
Mounting Position
Horizontal
Frequency
60/50 Hz
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
9.5 A
Product Type
Pump Motor
For Motor Replacement
Single-Speed Pump Motor
Nameplate Service Factor @ 60 Hz
1
Sub Application
Pool and Spa Pump
Control Connector Configuration
4-Pin
Includes Low Temperature Monitor
Low Temperature Monitor Included
Ambient Temperature - Maximum
50 Degrees C

Description

Variable Speed Pool Pump Motor, Frame 48Y, Hz 60/50 Hz, Full Load Amps 9.5, HP 1.65, Ins. Class F, Inverter Rated Yes, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Design ECM, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Frame Material Steel

Restrictions

This item has been restricted from sale in the following states: CA
