Shop U.S. MOTORS

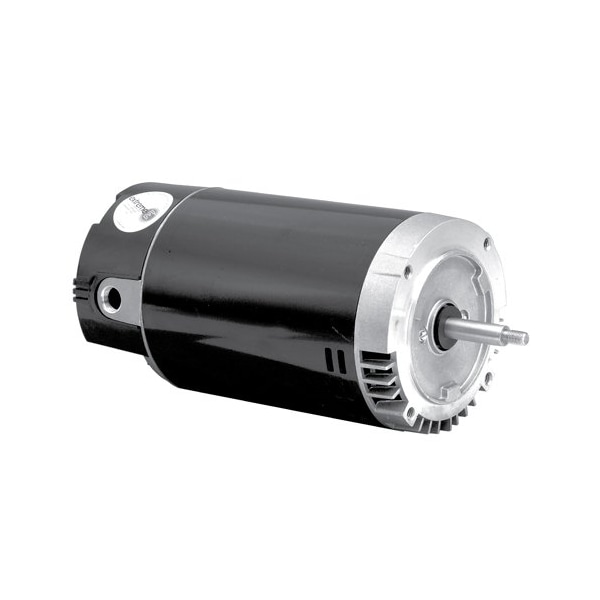

Pool and Spa Pump Motor, Permanent Split Capacitor, 3 HP, 56J Frame, 3,450 Nameplate RPM

  • Mfr # EUSN1302

  • Zoro # G7727934

product price:
$
704.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.2
Nameplate RPM
3,450
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EUSN1302
Zoro #
G7727934
UPC #
786382077990
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
24 mo
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56

Details

Item
Pool and Spa Pump Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Dripproof
HP
3
Motor Service Factor
1.2
Nameplate RPM
3,450
Frame
56J
Motor Shaft Rotation
CCW
Voltage
208-230V AC
Phase
Single
Motor Mounting Type
Face
Ins. Class
B
Max. Ambient Temp.
60 Degrees C
Hz
60 Hz
Motor Thermal Protection
Auto
Motor Shaft Design
Threaded
No. of Speeds
1
Standards
CE, CSA, Energy's Efficiency Regulation 10 CFR Section 431 Subpart B, ISO 9001:2015, UL
Motor Application
Pump
Motor Bearings
Ball
Max. SF Amps
16.0-14.8
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Weight
39 lb
Service Factor Current
14.8 to 16 A
Frequency
60 Hz
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof
Shaft Material
Stainless Steel
Ambient Temperature - Maximum
60 Degrees C
Shaft Design
Threaded
Sub Application
Pool and Spa Pump
Nameplate Service Factor @ 60 Hz
1.2
Efficiency Rating
Premium Efficiency (IE3)
Insulation Class
B
Number of Speeds
1
Application
Pump
Product Type
Pump Motor
Manufacturers Warranty
257 mo
Usable @ 200V
Not Usable at 200V

Description

Pool and Spa Pump Motor, CC Number CC030A, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, HP 3, Ins. Class B, Manufacturers Warranty Length 24 mo, Max. Ambient Temp. 60 Degrees C, Max. SF Amps 16.0-14.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Premium Efficient, Motor Enclosure Design Open Dripproof
