  11. Three-Phase Motor, 150 HP, 449TS Frame, 2,300/4,000V Voltage, 3,565 Nameplate RPM

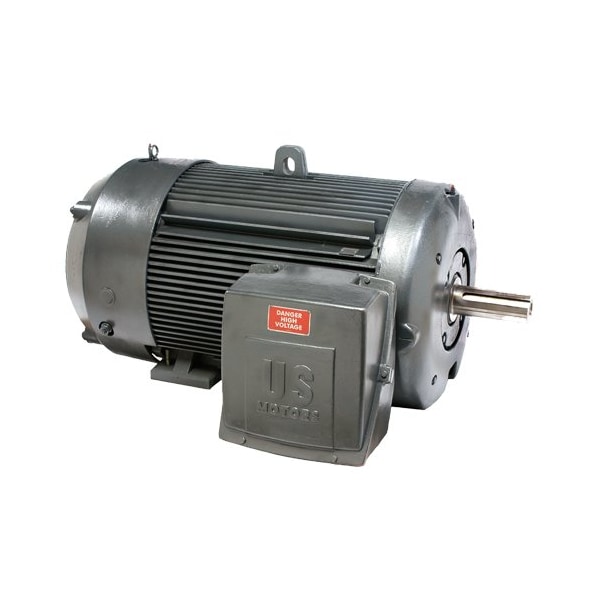

U.S. Motors Three-Phase Motor, 150 HP, 449TS Frame, 2,300/4,000V Voltage, 3,565 Nameplate RPM C150S1WS - main

Three-Phase Motor, 150 HP, 449TS Frame, 2,300/4,000V Voltage, 3,565 Nameplate RPM

  • Mfr # C150S1WS

  • Zoro # G0401631

product price: $28,774.99
/ea
Additional $390.00 delivery surcharge applies per item.
See details

Key Features

HP
150
Nameplate RPM
3,565
Voltage
2,300/4,000V
Motor Mounting Type
Rigid Base
Full Load Amps
34.0/19.3 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C150S1WS
Zoro #
G0401631
UPC #
786382117177
Country of Origin
Mexico

Dimensions

Length Less Shaft
46 5/8 in
Overall Length
51 3/8 in
Shaft Dia.
2 3/8 in
Shaft Length
4 3/4 in

Details

Item
Motor
HP
150
Nameplate RPM
3,565
Voltage
2,300/4,000V
Motor Mounting Type
Rigid Base
Full Load Amps
34.0/19.3 A
Frame
449TS
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
93 %
Standards
CSA
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Weight
2,500 lb

Description

Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 150 HP, Nameplate RPM 3,565, Frame 449TS, Voltage 2,300/4,000V, 60 Hz Hz, Three Phase, Full Load Amps 34.0/19.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, 3,001-3,600, CSA
