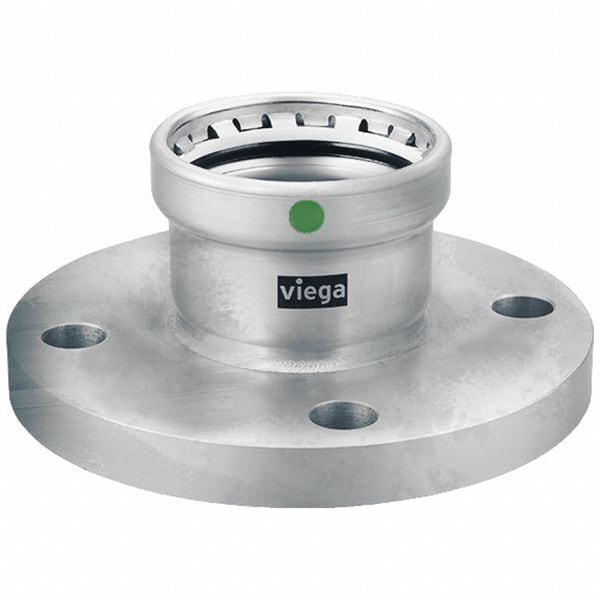

Flange, SS, Press-fit 2 1/2 in,
- Mfr # 90720
- Zoro # G506427674
product price:Â
$
516.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Flange
Standards
ABS Type approval ASME B31.1, ANSI/CAN/UL 213, ASME B31, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
Flange Thickness
7/8 in
Number of Bolt Holes
4
Fitting Side A Pipe Size
2 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 90720
- Zoro #
- G506427674
- UPC #
- 691514907208
- Country of Origin
- Germany
- Item
- Crimp Adapter Fitting
- Specific Fitting Shape
- Flange
- Standards
- ABS Type approval ASME B31.1, ANSI/CAN/UL 213, ASME B31, ASME B31.3, ASME B31.9BV, ASTM A312, ASTM A554, CRN 23076.5 A/B/CDNV-GLIAPMO PS117ICC-ES LC1002, NFPA 13, NFPA 13D, NFPA 13RFM Class 1920
- Number of Bolt Holes
- 4
- Fitting Side A Connection Type
- Press-Fit
- Fitting Material
- Stainless Steel
- Application
- Marine
- Material Grade
- 316
- O-Ring Material
- EPDM
- Compatible Tube Material
- Stainless Steel
- Color
- Silver
- Maximum Operating Temperature
- 250 Degrees F
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Minimum Operating Temperature
- 0 Degrees F
- Compatible Tool Brand
- Milwaukee, Ridgid
- Maximum Operating Pressure
- 200 psi
- Compatible Tube Hardness
- Schedule 5 to Schedule 40
- Fitting Shape
- Flange
- Operating Temperature - Maximum
- 250 Degrees F
- Operating Temperature - Minimum
- 0 Degrees F
- For Media Type
- Compressed Air, Potable Water
- Fitting Side 1 Connection Type
- Press-fit
- Operating Pressure - Maximum
- 200 psi
- Wire Color
- Silver
Dimensions
- Flange Thickness
- 7/8 in
- Fitting Side A Pipe Size
- 2 1/2 in
- Overall Length
- 3 9/32 in
- Fitting Side A Tube Outer Diameter
- 2 1/2 in
- Bolt Hole Diameter
- 5 1/2 in
- Flange Outside Diameter
- 7.09 in
- Fitting Side 1 Pipe Size
- 2 1/2 in
- Wire Rope Length
- 3 9/32 in
- Length
- 3 9/32 in
Description
Crimp Adapter Fitting, Application Marine, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Not Applicable, Fitting Side A Copper Tube Size Not Applicable, Fitting Side B Copper Tube Size Not Applicable, Fitting Material Stainless Steel, Fitting Side A Pipe Size 2 1/2 in, Fitting Side B Pipe Size Not Applicable, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Flange, Fitting Side A Tube Outer Diameter 2 1/2 in, Overall Length 3 9/32 in
