Viega

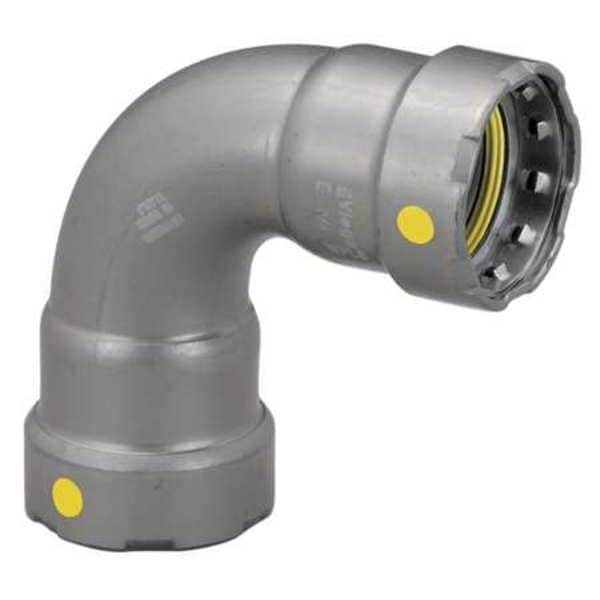

Viega MegaPressG 90 elbow, 1" x 1"

product price: $19.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Fitting Material Carbon Steel
  • Specific Fitting Shape 90 Degrees Elbow
  • Fitting Connection Type Press x Press
  • Tube Size 1 in
  • Pipe Size - Pipe Fitting 1 in x 1 in
See all product information

Product Information

Dimensions

Tube Size 1 in
Pipe Size - Pipe Fitting 1 in x 1 in
Pipe Size (Fittings) 1" x 1"
Fitting Side A Pipe Size 1 in
Fitting Side B Pipe Size 1 in

Details

Item 90 Degree Elbow
Tube Fitting Material Carbon Steel
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Press x Press
Standards ABS Type Approval, ANSI LC4/CSA 6.32, CRN 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO, IAPMO ANSI LC4/CSA 6.32, ICC, ICC-ES PMG-1036, IFGC, NFPA 54, NFPA 58
Basic Pipe Fitting Material Metal
Temp. Range -40 Degrees to 180 Degrees F
Specific Pipe Fitting Shape 90 Degrees Elbow
Pipe Fitting Connection Type Press x Press
Compliance ABS: American Bureau of Shipping, CRN: 0A14541.5 A/B, CSA ANSI LC4/CSA 6.32, CSA B149.1, IAPMO ANSI LC4/CSA 6.32, ICC-ES PMG-1036
Basic Pipe Fitting Shape Elbow
Max. Pressure 125 psi
Maximum Operating Pressure 125 psi
Finish/Coating Zinc Nickel-Plated
Fitting Side A Connection Type Press-Fit
O-Ring Material HNBR
Fitting Side B Connection Type Press-Fit
Resistance Properties Chemical-Resistant, Heat-Resistant, Oil-Resistant
Application Air, Fuel, Natural Gas
Fitting Material Carbon Steel
Maximum Operating Temperature 180 Degrees F
Minimum Operating Temperature 40 Degrees F

Description

90 Degree Elbow, Application Air, Fuel, Natural Gas, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Carbon Steel, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1 in, O-Ring Material HNBR, Specific Fitting Shape 90 Degrees Elbow, Finish/Coating Zinc Nickel-Plated, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 180 Degrees F

Restrictions
