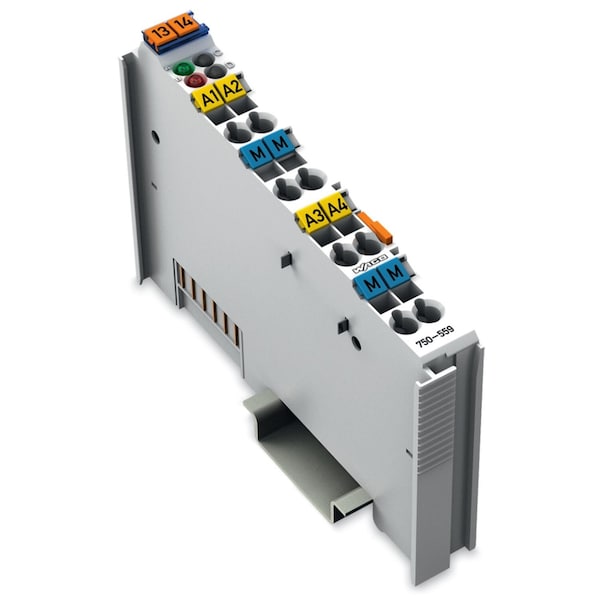

Analog Output Module
- Mfr # 750-559
- Zoro # G923561661
product price:
$
299.99
/ea
Free Shipping & Returns
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 750-559
- Zoro #
- G923561661
- UPC #
- -
- Country of Origin
- Germany
Description
This is a 4-channel analog output module from the WAGO I/O System 750 designed to generate standard industrial voltage signals (0-10 V DC). It is used in automation systems to control actuators, valves, and process devices with precise analog output control. Specifications: -Model: 750-559 -Type: Analog output module (WAGO I/O System 750) -Function: 4-channel analog voltage output -Output Signal Range: 0-10 V DC -Number of Outputs: 4 analog channels -Signal Type: Voltage output -Resolution: 12-bit -Conversion Time: -10 ms (typical) -Load Impedance: ≥ 5 kohm -Output Error: ≤ 0.1% (at reference temperature 25 deg C) -Temperature Drift: -0.01% / K -Isolation: 500 V (system/field isolation) -Supply Voltage: 24 V DC (field supply via system) -System Supply: 5 V DC (via backplane) -Current Consumption: -125 mA (system side) -Mounting: DIN rail (35 mm) -Connection Type: CAGE CLAMP spring terminals -Housing Material: Polycarbonate (PC) -Protection Class: IP20 -Operating Temperature: 0 deg C to 55 deg C -Dimensions: 100 x 12 x 69.8 mm
