Shop WAGO

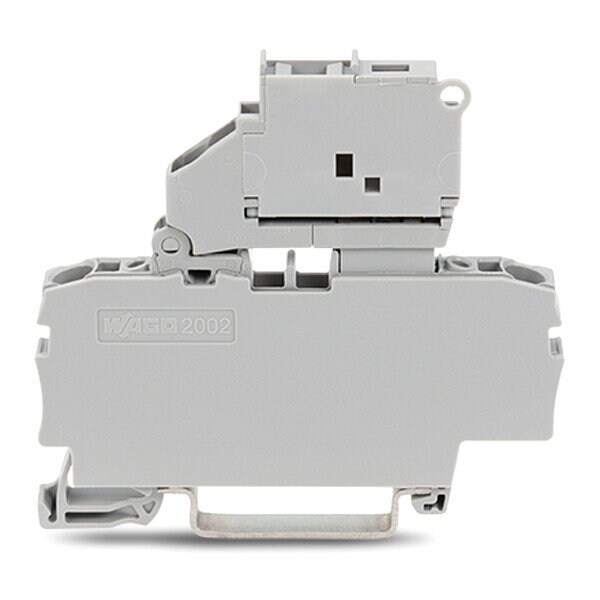

Terminal Block, 2.6" L, 250V, Gray

  • Mfr # 2002-1611

  • Zoro # G022935561

product price:
$
8.85
/ea

Key Features

For Channel Rail Size
35 mm
For Conductor Type
Solid, Stranded
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
For Minimum Wire Size
22 AWG
Current
6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1611
Zoro #
G022935561
UPC #
-
Country of Origin
China

Dimensions

For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
For Fuse Length
20 mm
For Maximum Wire Size
12 AWG
For Fuse Diameter
5 mm
Overall Depth
0.24 in
Wire Rope Length
2.6 in
Strip Length
15/32 in
Overall Length
2.6 in

Details

For Conductor Type
Solid, Stranded
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
Current
6 A
Series
2002
Housing Color
Gray
Minimum Operating Temperature
-60 Degrees C
Connection Type
Push-In
Circuit Protection Type
Fuse
Special Features
2 Jumper Slots, Front-Entry Wiring
Number of Poles
1
Housing Material
Polyamide 66
For Conductor Material
Copper
Maximum Voltage
250 V
Number of Connections
2
Item
Terminal Block
Number of Tiers
1
UL 94 Flammability Rating
V-0
Terminal Block Type
Disconnect
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 6 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 250 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.24 in, Overall Length 2.6 in
