Shop WAGO

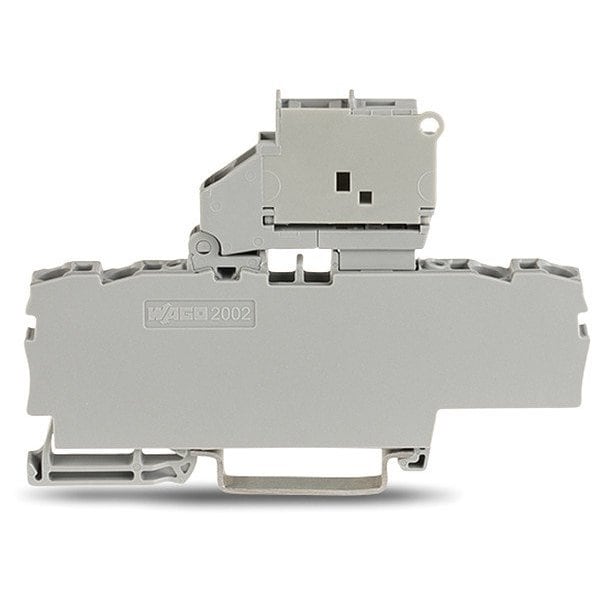

Terminal Block, 3.44" L, 250V, Gray

  • Mfr # 2002-1811

  • Zoro # G922935548

product price:  $13.65
/ea

Key Features

Circuit Protection Type
Fuse
Wire Rope Length
3.44 in
For Maximum Wire Size
12 AWG
Strip Length
15/32 in
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2002-1811
Zoro #
G922935548
UPC #
-
Country of Origin
China

Dimensions

Wire Rope Length
3.44 in
For Maximum Wire Size
12 AWG
Strip Length
15/32 in
Overall Depth
0.24 in
For Fuse Diameter
5 mm
For Channel Rail Size
35 mm
For Minimum Wire Size
22 AWG
For Fuse Length
20 mm
Overall Length
3.44 in

Details

Circuit Protection Type
Fuse
2-Pole Jumper Compatibility
2002-400, 2002-402, 2002-402/000-005, 2002-402/000-006, 2002-423, 2002-423/000-005, 2002-423/000-006, 2002-424, 2002-424/000-005, 2002-424/000-006, 2002-433, 2002-434, 2002-435, 2002-436, 2002-437, 2002-438, 2002-439, 2002-440, 2002-472, 2002-473/011-000
Number of Tiers
1
6-Pole Jumper Compatibility
2002-406, 2002-406/000-005, 2002-406/000-006, 2002-406/020-000, 2002-476, 2002-481/011-000
Current
6 A
Special Features
2 Jumper Slots, Front-Entry Wiring
For Conductor Type
Solid, Stranded
Terminal Block Type
Disconnect
Housing Material
Polyamide 66
Minimum Operating Temperature
-60 Degrees C
Connection Type
Push-In
UL 94 Flammability Rating
V-0
Housing Color
Gray
Number of Connections
4
Series
2002
For Conductor Material
Copper
Item
Terminal Block
Maximum Voltage
250 V
Number of Poles
1
Standards
ABS EN 60947 24-0152298-PDA, AEx UL 60079 E185892 (AEx eb IIC resp. Ex eb IIC), ATEX EN 60079 KIWA 17ATEX0030 U, ATEX-Attestation of Conformity, CCA EN 60947 NTR NL-8054, CCC GB/T 3836.3 2020312313000180 (Ex ec IIC Gc)), CE, CSA C22.2 No. 158 154112, DEKRA EN 60947 71-149763, DNV GL TAE00001V2, IECEX EN 60079 IECEx KIWA 17.0014U (Ex ec IIC Gc), KEMA/KEUR EN 60947 71-124163, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172

Description

Terminal Block, Circuit Protection Type Fuse, Connection Type Push-In, Current 6 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Housing Color Gray, Maximum Voltage 250 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, For Fuse Diameter 5 mm, For Fuse Length 20 mm, Overall Depth 0.24 in, Overall Length 3.44 in
