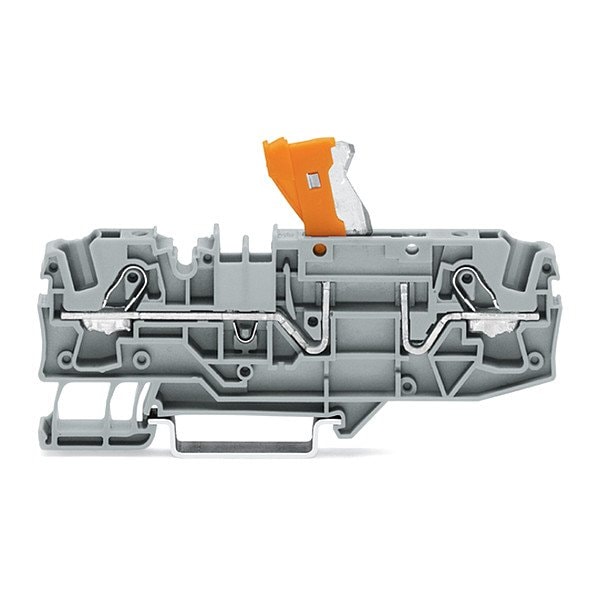

Terminal Block, 3.79" L, 800V, Gray
Mfr # 2006-1671
Zoro # G722935526
product price:Â
$
11.59
/ea
Key Features
Number of Tiers
1
Terminal Block Type
Disconnect
For Minimum Wire Size
20 AWG
Number of Poles
1
Housing Material
Polyamide 66
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2006-1671
- Zoro #
- G722935526
- UPC #
- -
- Country of Origin
- China
- Number of Tiers
- 1
- Terminal Block Type
- Disconnect
- Number of Poles
- 1
- Housing Material
- Polyamide 66
- Minimum Operating Temperature
- -60 Degrees C
- Housing Color
- Gray
- Circuit Protection Type
- None
- Connection Type
- Push-In
- Maximum Voltage
- 800 V
- Special Features
- 2 Jumper Slots, Front-Entry Wiring
- Series
- 2006
- Current
- 30 A
- Item
- Terminal Block
- For Conductor Type
- Solid, Stranded
- UL 94 Flammability Rating
- V-0
- Standards
- ABS EN 60947 24-0152298-PDA, CCA EN 60947 NTR NL 7925/1, CCA IEC 60947 71-122840 REV.1, CE, CSA C22.2 No. 158 1543858, DNV GL TAE00001V2, EN 60947 LR23325966TA, PRS TE/1094/880590/23, RoHS Compliant, UKCA, UL 1059, UL File No. E45172
- For Conductor Material
- Copper
- 2-Pole Jumper Compatibility
- 2006-402, 2006-433, 2006-434, 2006-435
- Number of Connections
- 2
Description
Terminal Block, Circuit Protection Type None, Connection Type Push-In, Current 30 A, For Minimum Wire Size 20 AWG, For Maximum Wire Size 8 AWG, Housing Color Gray, Maximum Voltage 800 V, Mounting Type DIN Rail, Number of Poles 1, Number of Tiers 1, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 0.29 in, Overall Length 3.79 in
