  11. Indexable Boring Bar, 200.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

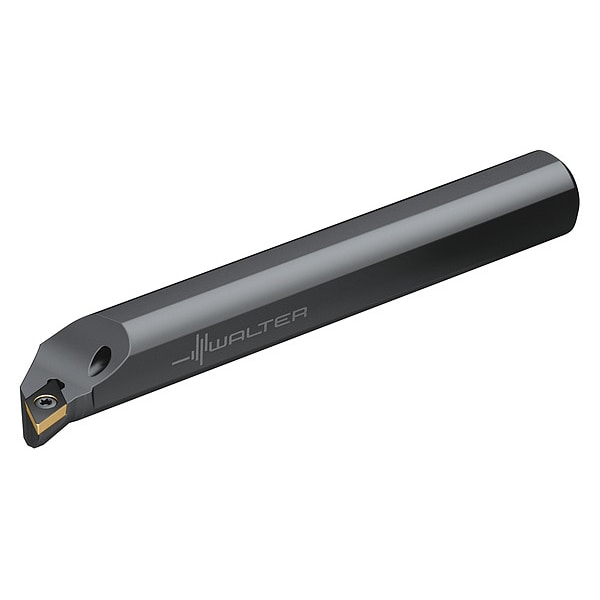

Walter Indexable Boring Bar, 200.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape A16R-SDQCL07 - main

Indexable Boring Bar, 200.00mm L, High Speed Steel, 55 Degrees Diamond Insert Shape

  • Mfr # A16R-SDQCL07

  • Zoro # G7886331

product price: $204.99
/ea
Free Shipping & Returns

Key Features

Overall Length
200.00mm
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
Left/Right Hand
Left
Min. Bore
0.787"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A16R-SDQCL07
Zoro #
G7886331
UPC #
-
Country of Origin
Sweden

Dimensions

Overall Length
200.00mm
Bar Dia.
0.630"
Insert Size
0702
Shank Dia.
16.00mm
Min. Bore Dia.
20.00mm
Max. Bore Depth
64.00mm

Details

Item
Indexable Boring Bar
Shank Material
High Speed Steel
Insert Shape
55 Degrees Diamond
Left/Right Hand
Left
Min. Bore
0.787"
Lead Angle
107 Degrees
Mounting Style
Screw Clamp
Rake
Positive
Type
Coolant Thru
Style
107 Degrees Boring and Facing
ANSI Number
A16R-SDQCL07
Cutting Edge Type
0 Degrees
For Use With
DC0702 Series
Includes
FS1490 Torx Key, FS2061 Clamping Screw
Cutting Direction
Left Hand
Number of Inserts
1
Secondary Material Application ISO Code
H
Approach Angle
107.5 Degrees
Insert Style
DC
Head Material
Steel
Insert Holding Type
Screw On
Secondary Material Application
Hardened Steel
Insert Clearance Angle
7 Degrees
Cutting Application
Facing, Interrupted Cuts, Profiling, Turning
Number of Coolant Holes
1
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
K, M, N, P, S
ISO Number
A16R-SDQCL07
Compatible Hardware
FS1490 Torx Key, FS2061 Clamping Screw
Center to Cutting Tip
11.00mm
Coolant Fed
Coolant Through

Description

Indexable Boring Bar, Insert Shape 55 Degrees Diamond, Overall Length 200.00mm, 107.5 Degrees , 11.00mm, FS1490 Torx Key, FS2061 Clamping Screw, Coolant Through, Facing, Interrupted Cuts, Profiling, Turning, Left Hand
