  11. Triangle Turning Insert, Triangle, 1/2 in, TNMG, 0.8 mm, Carbide

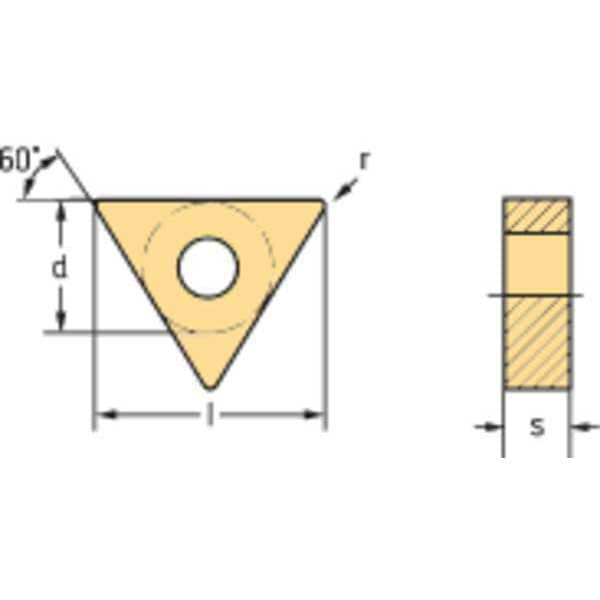

Walter Triangle Turning Insert, Triangle, 1/2 in, TNMG, 0.8 mm, Carbide TNMG220408-MK5 WKK10S - main

Triangle Turning Insert, Triangle, 1/2 in, TNMG, 0.8 mm, Carbide

  • Mfr # TNMG220408-MK5 WKK10S

  • Zoro # G7942545

product price: $22.39
/ea
Sold in multiples of 10 for $223.90

Key Features

Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
1/2 in
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TNMG220408-MK5 WKK10S
Zoro #
G7942545
UPC #
-
Country of Origin
Germany

Dimensions

Insert Size
432
Corner Radius
0.8 mm
Insert Thickness
0.1880"
Mounting Hole Dia.
0.203"
Nose Radius
0.0310"
Depth of Cut
1.00 mm to 6.00 mm
Thickness
4.76 mm
Cutting Edge Length
22 mm
Through Hole Inside Dia.
5.16 mm

Details

Item
Triangle Turning Insert
Insert Shape
Triangle
Insert Style
TNMG
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Grade
WKK10S
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
TNMG220408-MK5 WKK10S
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Hardened (H)
Super Alloy (S) Compatibility
No
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
No
No. of Edges
3
ANSI Number
TNMG433
Relief Angle
0 Degrees
Mounting Style
Clamp
Coating
CVD
Cutting Direction
Neutral
Stainless (M) Compatibility
No
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
Yes
Shape
Triangle
Measurement System
Metric
Primary Material Application
Cast Iron
Material - Machining
Carbide
ANSI Code
TNMG432-MK5 WKK10S
Insert Holding Type
Straight Hole
Cutting Application
Turning
Number of Cutting Edges
3
Finish - Machining
TiCN+Al2O3+TiCN
Coating Process
CVD
Clearance Angle
0 Degrees
Chip-Breaker Code
MK5
Primary Material Application ISO Code
K
Manufacturer Grade
WKK10S
Included Angle
60 Degrees
Material
Carbide

Description

Triangle Turning Insert, Chip-Breaker Code MK5, Inscribed Circle 1/2 in, TiCN+Al2O3+TiCN
