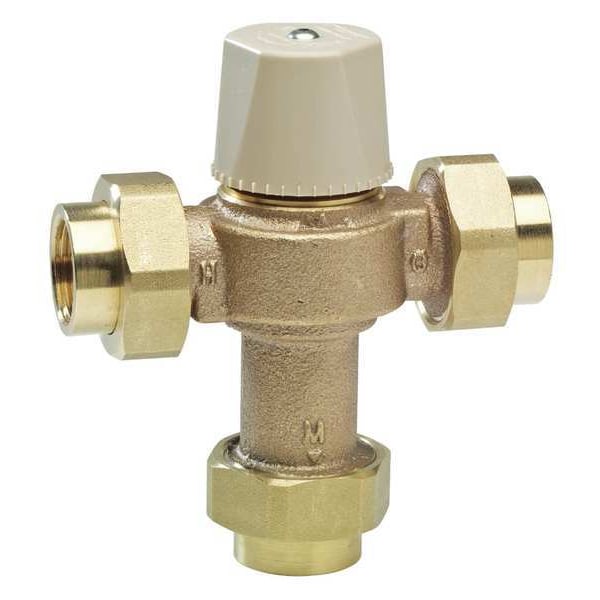

Thermostatic Mixing Valve, 3/4 in.
- Mfr # LFMMV-M1-UT
- Zoro # G6896337
product price:Â
$
312.42
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/4 in
Outlet Type
Threaded
Flow Rate
13 gpm
Inlet Type
Union
Overall Width
4 7/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LFMMV-M1-UT
- Zoro #
- G6896337
- UPC #
- 098268040104
- Country of Origin
- United States
- Item
- Thermostatic Mixing Valve
- Outlet Type
- Threaded
- Flow Rate
- 13 gpm
- Inlet Type
- Union
- Inlet Temperature (Hot)
- 120 Degrees to 180 Degrees F
- Standards
- ASSE 1017, ASSE 1069, ASSE 1070, UPC
- Temp. Range
- 80 Degrees to 120 Degrees F
- Body Material
- Copper Silicon Alloy
- Max. Pressure
- 150 psi
- For Use With
- Domestic Hot Water Applications
- Inlet Temperature (Cold)
- 33 Degrees to 85 Degrees F
- Includes
- Check Valves, Integral Filter Washers, Solid Wax Hydraulic Principle Thermostat
- Valve Type
- Thermostatic
- Operating Temperature - Maximum Outlet
- 120 Degrees F
- Operating Temperature - Minimum Outlet
- 80 Degrees F
- Operating Pressure - Maximum
- 150 psi
- Inlet Connection Type - Hot
- NPT
- Inlet Temperature - Maximum Cold
- 85 Degrees F
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Includes Temperature Gauge
- Temperature Gauge Not Included
- Inlet Temperature - Minimum Cold
- 39 Degrees F
- Inlet Connection Type - Cold
- NPT
- For Media
- Hot Water, Water
- Inlet Temperature - Minimum Hot
- 120 Degrees F
Dimensions
- Inlet Size
- 3/4 in
- Overall Width
- 4 7/8 in
- Outlet Size
- 3/4 in
- Overall Height
- 5 7/16 in
- Overall Length
- 4 7/8 in
- Outlet Connection Size
- 3/4 in
- Inlet Connection Size - Hot
- 3/4 in
- Inlet Connection Size - Cold
- 3/4 in
- Wire Rope Length
- 4 7/8 in
- Length
- 4 7/8 in
Description
Thermostatic Mixing Valve, Body Material Copper Silicon Alloy, Flow Rate 13 gpm, Inlet Type Union, Outlet Type Threaded, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 80 Degrees to 120 Degrees F, Max. Pressure 150 psi, Overall Height 5 7/16 in, Overall Width 4 7/8 in, Inlet Temperature (Cold) 33 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Domestic Hot Water Applications
