Shop WEG

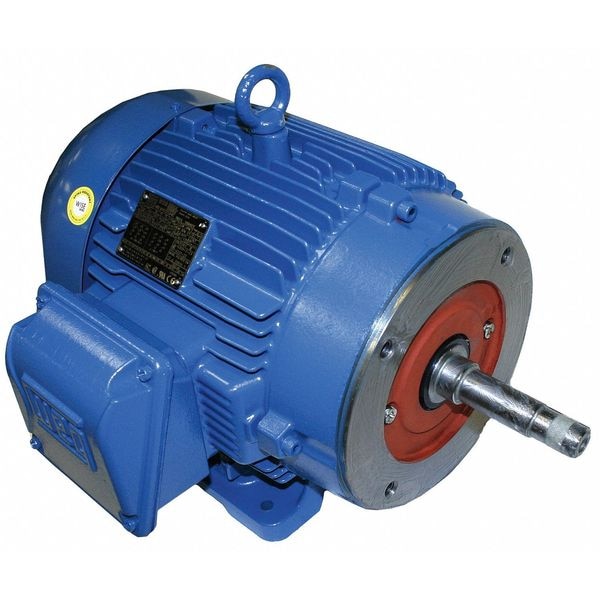

Pump Mtr, 3ph, 20hp, 1765, 208-230/460, 256JM

  • Mfr # 02018ET3E256JM-W22

  • Zoro # G3665532

product price:  $2,906.99
/ea
Additional $165.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
20
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
02018ET3E256JM-W22
Zoro #
G3665532
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Length
26 1/4 in
Shaft Dia.
1 1/4 in
Length Less Shaft
21 in
Shaft Length
5 1/4 in
Body Dia.
12.9 in
Manufacturers Warranty Length
3 yr
Height
12 15/16 in
Bolt Circle Dia.
7 1/4 in
Shaft Dia. (In.)
1-1/4
Bolt Circle Diameter
7 1/4 in
Frame Size
254JM
Body Diameter
12.9 in
Shaft Diameter
1 1/4 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
20
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
208-230/460V AC
Frame
254/6JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Phase
Three
Inverter Rated
Inverter Rated
Motor Efficiency Group
NEMA Premium Efficient
Full Load Amps
53.3-48.2/24.1 A
Hz
60 Hz
Motor Shaft Design
JM Threaded
Motor Sub Application
Close-Coupled Pump
Duty
Continuous
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Cast Iron
Max. Ambient Temp.
40 Degrees C
CC Number
CC029A
Motor Application
Pump
Nominal Efficiency
93 %
Frame Material
Cast Iron
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Ins. Class
F
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Standards
CSA (LR38324), CSA (LR50962), UL (E104590)
Motor Thermal Protection
None
Motor Bearings
Ball
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Conduit Box Position
F1
Conduit Box Location
Exterior
Weight
363 lb
NEMA Design
B
No. of Speeds
1
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Shaft Material
Carbon Steel
Inverter Rating
1000:1
Motor Mounting Position
Horizontal
Regreasable Bearings
Regreasable Bearings
Application
Pump
Shaft Type
JM Threaded
Includes Low Temperature Monitor
Low Temperature Monitor Not Included
Nameplate Service Factor @ 60 Hz
1.25
Efficiency Rating
Premium Efficiency (IE3)
NEMA Design Class
B
Bearing Type
Ball
Number of Speeds
1
Number of Wires
9
Product Type
Pump Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Series
W22 TEFC
Shaft Thread Type
JM
Frequency
60 Hz
Bearing Lubrication Type
Regreasable Bearings
Full Load Current @ 60 Hz
53.3-48.2/24.1 A
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Shaft Design
Threaded
Manufacturers Warranty
3 yr
Insulation Class
F

Description

Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254/6JM, Hz 60 Hz, Full Load Amps 53.3-48.2/24.1, Height 12 15/16 in, HP 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 21 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
