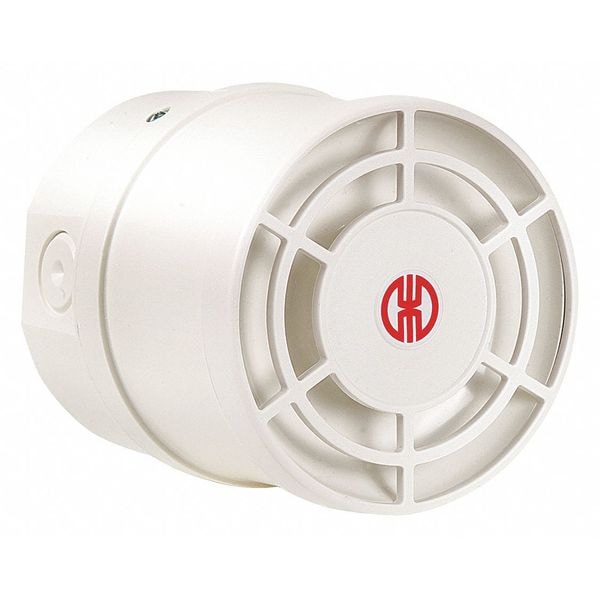

Multi-Tone Sounder, Buzzer, Continuous/Pulse, 9 to 28V DC, 115 dB, Polycarbonate/ABS Blend, White

  • Mfr # 14095050

  • Zoro # G6030722

product price:
$
109.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Diameter
3.9375 in
Audible Alarm Type
Buzzer
Standards
CE, EAC, RoHS, UKCA, WEEE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
14095050
Zoro #
G6030722
UPC #
-
Country of Origin
China

Dimensions

Diameter
3.9375 in
Height
4.3125 in
Depth
3.9375 in
Width
3.9375 in
Overall Depth
110 mm
Overall Diameter
100 mm

Details

Item
Multi-Tone Sounder
Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Color
White
Audible Alarm Type
Buzzer
Voltage
9 to 28V DC
Standards
CE, EAC, RoHS, UKCA, WEEE
Indoor/Outdoor
Indoor, Outdoor
Decibels
115 dB
Sound Pattern
Continuous/Pulse
Flashes per Minute
0
Visual Indicator Type
No Visual Indicator
Features
32 Tones Adjustable for Various Applications
Housing Color
White
Vibrating
No
Operating Temp.
-40 Degrees to 158 Degrees F
Power Source
Wire
Wattage
0.12 W
Product Type
Tone Generator
Material
ABS, Polycarbonate
Rating
IP 65
Control Protocol
Direct Wire
Alarm Volume @ 1 m - Maximum
115 dBA
Sound Style
Tone
Vibration
No Vibration
Sound Continuity
Continuous, Pulse
Alarm Volume @ 10 ft - Minimum
115 dB
Number of Sound Patterns
32
Operating Temperature - Maximum
70 Degrees C
Mounting Style
Surface Mount
Includes Mounting Hardware
No Mounting Hardware
Volume Selection
Fixed Volume
Operating Temperature - Minimum
-40 Degrees C
Alarm Volume @ 1 m - Minimum
115 dB
Sound Principle
Resonating
Connection Type
Screw Terminal
Alarm Volume @ 10 ft - Maximum
115 dB
Operating Current
0.120 A
IP Rating
IP65
For Location
Indoor, Outdoor
Operating Voltage
9 to 28V DC
Power Source - TS Only
Wire
Power Source - old
Wire

Description

WERMA 14095050 is a multi-tone sounder with a buzzer-style audible output for warning and signaling applications. It operates on 9 to 28V DC direct wire power and has a rated sound output of 115 dB at 1 m. The unit supports continuous and pulse sound patterns with 32 selectable tones. Its white polycarbonate/ABS blend housing has an IP65 rating and is designed for wall or surface mounting.

Key Features:

  • Audible alarm type: buzzer with tone-style output
  • Rated sound output: 115 dB at 1 m
  • Sound patterns: continuous/pulse
  • Number of tones: 32 selectable tones
  • Operating voltage: 9 to 28V DC
  • Connection type: screw terminal with direct wire control
  • Mounting: surface/wall mount
  • Housing material: polycarbonate/ABS blend
  • Ingress protection rating: IP65
  • Operating temperature: -40°C to 70°C
  • Visual indicator type: none
  • Standards: multiple applicable compliance standards
