Shop WERMA

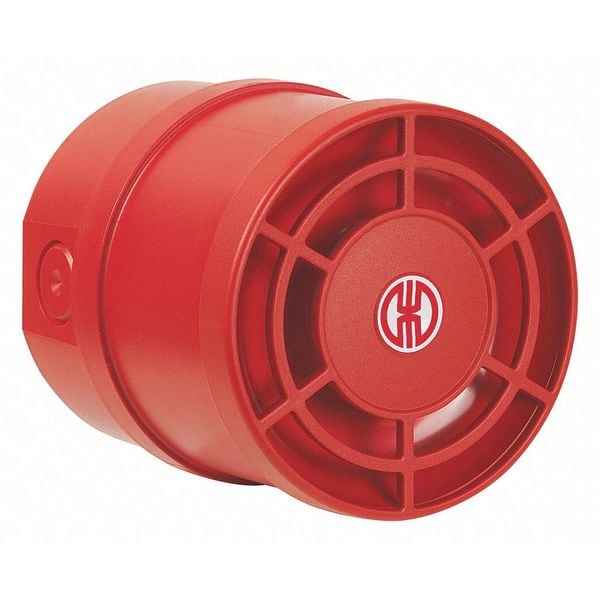

Multi-Tone Sounder, Buzzer, Continuous/Pulse, 115 to 230V AC, 115 dB, Polycarbonate/ABS Blend, Red

  • Mfr # 14015060

  • Zoro # G6040428

product price:  $163.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Diameter
3.9375 in
Audible Alarm Type
Buzzer
Standards
CE, EAC, RoHS, UKCA, WEEE
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
14015060
Zoro #
G6040428
UPC #
-
Country of Origin
China

Dimensions

Diameter
3.9375 in
Height
4.3125 in
Depth
3.9375 in
Width
3.9375 in
Overall Depth
110 mm
Overall Diameter
100 mm

Details

Item
Multi-Tone Sounder
Housing Material
Polycarbonate/ABS Blend
Mounting
Surface, Wall
Color
Red
Audible Alarm Type
Buzzer
Voltage
115 to 230V AC
Standards
CE, EAC, RoHS, UKCA, WEEE
Indoor/Outdoor
Indoor, Outdoor
Decibels
115 dB
Sound Pattern
Continuous/Pulse
Visual Indicator Type
No Visual Indicator
Vibrating
No
Housing Color
Red
Flashes per Minute
0
Features
32 Tones Adjustable for Various Applications
Operating Temp.
-40 Degrees to 158 Degrees F
Power Source
Wire
Product Type
Tone Generator
Wattage
0.12 W
Material
ABS, Polycarbonate
Rating
IP 65
Sound Principle
Resonating
Number of Sound Patterns
32
IP Rating
IP65
Volume Selection
Fixed Volume
Control Protocol
Direct Wire
Sound Continuity
Continuous, Pulse
Operating Temperature - Maximum
70 Degrees C
Alarm Volume @ 1 m - Maximum
115 dBA
Operating Current
0.040 A
Includes Mounting Hardware
No Mounting Hardware
Operating Temperature - Minimum
-40 Degrees C
Alarm Volume @ 1 m - Minimum
115 dB
Vibration
No Vibration
Alarm Volume @ 10 ft - Maximum
115 dB
Alarm Volume @ 10 ft - Minimum
115 dB
Mounting Style
Surface Mount
Sound Style
Tone
For Location
Indoor, Outdoor
Connection Type
Screw Terminal
Operating Voltage
115 to 230V AC
Power Source - TS Only
Wire

Description

WERMA 14015060 is a red multi-tone sounder with a buzzer-style audible signal for indoor and outdoor signaling applications. It operates on 115 to 230V AC and produces a 115 dB alarm output with continuous and pulse sound patterns. The unit features 32 selectable tone settings and uses a direct-wire connection through screw terminals.

Key Features:

  • Audible alarm type: Buzzer with tone sound style and resonating sound principle.
  • Sound output: 115 dB alarm volume.
  • Sound patterns: Continuous/pulse operation with 32 selectable tone settings.
  • Voltage: 115 to 230V AC.
  • Connection: Direct-wire design with screw terminal connection.
  • Housing: Red polycarbonate/ABS blend construction.
  • Mounting: Surface and wall mount configuration.
  • Ingress protection: IP65.
  • Operating temperature: -40 to 158 degrees F.
  • Dimensions: 4.3125 in H x 3.9375 in W x 3.9375 in D.
  • Visual indicator: None.
  • Mounting hardware included: No.
  • Standards: Meets multiple applicable standards/certifications.
