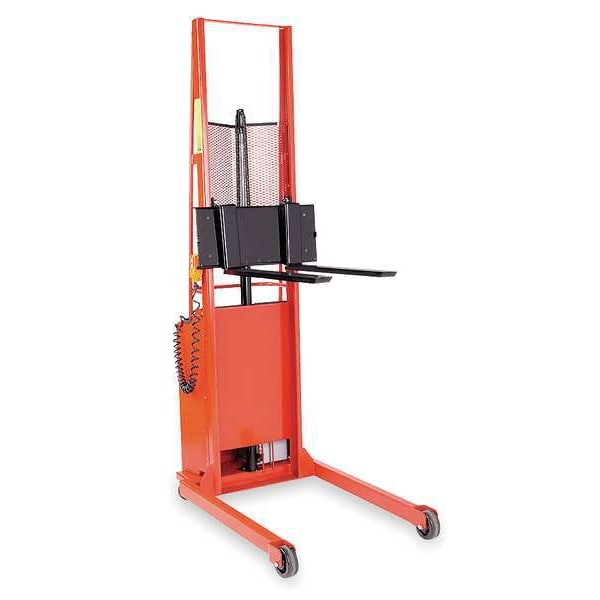

Hyd Stacker, 1000 lb, 76 In Lift, 92 In H

Mfr # 261030
Zoro # G3018751

4,159.99

Additional $300.00 delivery surcharge applies per item.

Key Features

Overall Height

92 in

Overall Length

44 1/2 in

Overall Width

25 1/2 in

Color

Orange

Load Capacity

1,000 lb

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 261030
Zoro #: G3018751
UPC #: 678655638512
Country of Origin: United States

Dimensions

Overall Height: 92 in
Overall Length: 44 1/2 in
Overall Width: 25 1/2 in
Lifting Height Min.: 1 in
Rear Caster Dia.: 4 in
Rear Wheel Dia.: 4 in
Fork Length: 25 in
Manufacturers Warranty Length: 1 yr
Front Caster Dia.: 5 in
Fork Width: 3 in
Lifting Height Max.: 76 in
Front Wheel Dia.: 5 in
Base Inside Width: 15 in
Axle-Mounted Wheel Dia.: 5 in
Handle Height: 47 in
Caster Wheel Dia.: 4 in
Axle Dia.: 5/8 in
Fork Thickness: 1 in
Axle-Mounted Wheel Width: 2 1/2 in
Overall Height with Forks Lowered: 92 in
Lifting Height Range: 1 in to 6 ft 4 in
Overall Height with Forks Raised: 92 in
Minimum Lifting Height: 1 in
Caster Wheel Width: 2 in
Caster Mounting Plate Size: 3 in x 3 in
Width Across Forks: 6 in to 24 in
Maximum Lifting Height: 76 in
Width Between Forks: 3 in
Overall LxWxH: 44 1/2 in x 25 1/2 in x 92 in
Turning Radius: 4 ft 2 in
Base Outside Width: 21 in
Depth: 92 in
Length: 44 in
Wire Rope Length: 44 1/2 in

Details

Color: Orange
Load Capacity: 1,000 lb
Item: Powered-Lift/Manual-Push Straddle Stacker
Assembled: Yes
Lift Mechanism: Hydraulic
Invertible Forks: No
Base Legs Outside Dim.: 21 in
Lift Voltage: 12V DC
Load Center: 15 in
Base Legs Inside Dim.: 15 in
Powered By: Battery
Lift Control: Push Button
Lift Mobility: Electric Lift, Manual Push
Frame Material: Steel
Lift Base Style: Fixed Straddle
Includes: Battery and Charger
Charge Time: 1 hr
Battery Voltage: 110V AC
Weight: 485 lb
Operation: Powered/Manual
Caster Frame Material: Steel
Non-Marking Casters/Wheels: Yes
Frame Type: Flat Back
Base Style: Fixed Straddle
Frame Finish: Powder Coated
Axle-Mounted Wheel Type: Tread on Core
For Surface Type: Concrete
Battery Type: Sealed Lead Acid
Non-Marking Axle-Mounted Wheels: Yes
Battery Amp Hours: 12 Ah
Base Material: Steel
Charger Voltage: 120V AC
Power Connection Type: Plug In
Number of Batteries: 1
Charger Type: On-Board
For Pallet Type: Open
Fork Type: Adjustable Invertible
Standards: ANSI B56.10
Caster Mounting Type: Plate
Caster Wheel Bearings: Ball Bearing
Fluid Type: AW32
Caster Wheel Type: Swivel
Caster Brake Type: No Caster Brake
Axle-Mounted Wheel/Tread Material: Phenolic
Caster/Wheel Configuration: (2) Swivel, (2) Axle-Mounted
Axle-Mounted Wheel Bearings: Ball Bearing
Method of Construction: Welded
Handle Material: Steel
Caster Wheel/Tread Material: Phenolic
Run Time: 3 hr
Base Type: Fixed Straddle

Description

Powered/Manual, Base Type Fixed Straddle, Lift Control Push Button, Lift Mechanism Hydraulic, Fork Type Adjustable Invertible, Load Capacity 1,000 lb, Fork Length 25 in, Fork Width 3 in, Width Between Forks 3 in, Width Across Forks 6 in to 24 in, Minimum Lifting Height 1 in, Maximum Lifting Height 76 in, Lifting Height Range 1 in to 6 ft 4 in, Overall Length 44 1/2 in, Overall Width 25 1/2 in, Overall Height with Forks Lowered 92 in, Overall Height with Forks Raised 92 in

Restrictions

Hazardous material
