Shop WESTGATE

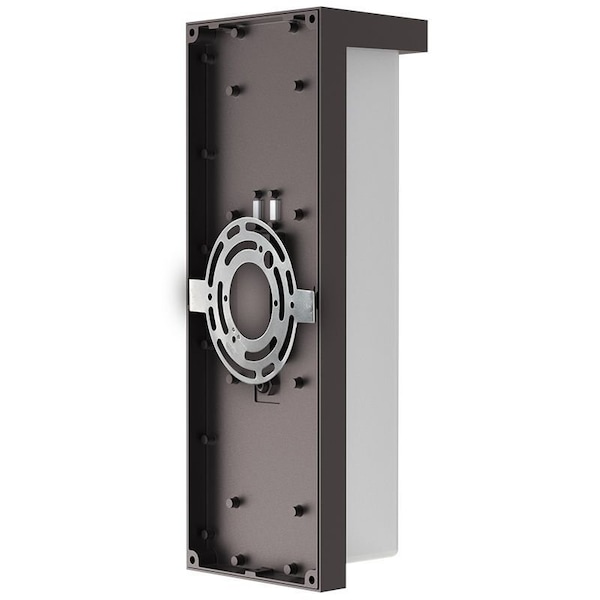

14in FULL-LENS WALL SCONCE SELECT 18/20/22W 30/40/50K 12-277V, ORG, 18W/20W/22W, 30K/40K/50K

  • Mfr # LDSX-L-18-22W-MCTP-ORB

  • Zoro # G124885283

product price:
$
76.79
/ea

Key Features

IP Rating
IP42
Length
14.02 in
Weight
1.68 lb
Dimmable
triac and 0-10V dimming
Standards
ETL, ES
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDSX-L-18-22W-MCTP-ORB
Zoro #
G124885283
UPC #
845060012668
Country of Origin
China

Dimensions

Length
14.02 in
Height
3.74 in
Width
5.0 in

Details

IP Rating
IP42
Weight
1.68 lb
Dimmable
triac and 0-10V dimming
Standards
ETL, ES
Lumens
100LM/W
Housing Material
Steel& acrylic
Item
14In Full-Lens Wall Sconce Select 18/20/22W 30/40/50K 12-277V
Finish
Oil-Rubbed Bronze
Beam Angle
150°~160°
CRI
80
Voltage
120-277V
Rated Life
>50000
Power Factor
>90
Color Temperature
30K/40K/50K
Lighting Technology
LED
Fixture Wattage
18W/20W/22W
Operating Temp. Range
-20°C~40°C

Description

The Westgate LDSX-L-18-22W-MCTP-ORB is a 14in full-lens wall sconce select 18/20/22w 30/40/50k 12-277v. It delivers 100LM/W of 30K/40K/50K light at 18W/20W/22W. Operates on 120-277V input power. Constructed of steel& acrylic in a oil-rubbed bronze finish. Dimming: triac and 0-10V dimming. Key specifications: CRI 80, power factor >90, THD <20%, beam angle 150 Deg-160 Deg, operating temperature -20 DegC-40 DegC, >50000 rated life, IP42 ingress protection. Light source: LED. Certifications: ETL, ES.
