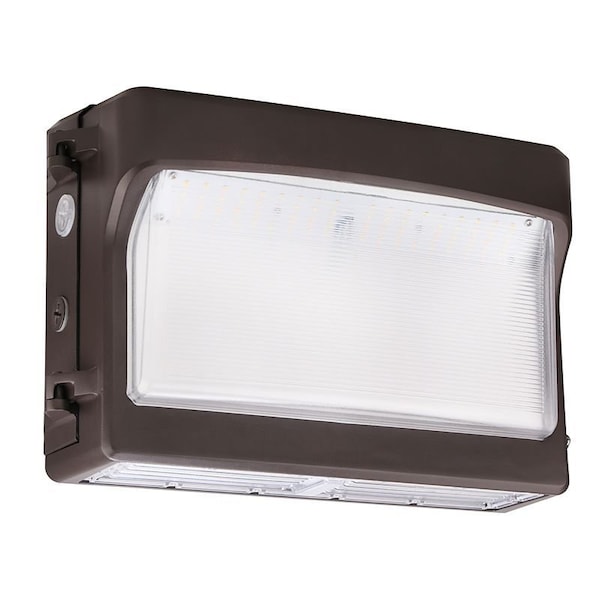

X-GEN CUT-OFF WALL PACK w/20% AMBIENT LIGHT ADJ. 100/80/60W 30/40/50K PC LENS BRONZE, 30K/40K/50K
- Mfr # WPAX-100W-MCTP
- Zoro # G924885094
product price:Â
$
185.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP65
CRI
>80
Power Factor
>0.9
Rated Life
50000hrs
Housing Material
PC + Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- WPAX-100W-MCTP
- Zoro #
- G924885094
- UPC #
- 845060092479
- Country of Origin
- Viet Nam
Dimensions
- Height
- 4.88 in
- Width
- 9.37 in
- Length
- 14.37 in
Details
- IP Rating
- IP65
- CRI
- >80
- Power Factor
- >0.9
- Rated Life
- 50000hrs
- Housing Material
- PC + Aluminum
- Operating Temp. Range
- -40 Degrees to 50 Degrees C, Sensor: -25 Degrees to 50 Degrees C
- Item
- X-Gen Cut-Off Wall Pack With 20% Ambient Light Adj. 100/80/60W 30/40/50K PC Lens Bronze
- Fixture Wattage
- 60W/80W/100W
- Voltage
- 120V to 277V
- Lumens
- 130LM/W
- Finish
- Bronze
- Beam Angle
- 97*77Degree
- Weight
- 5.73 lb
- Dimmable
- 0-10V
- Color Temperature
- 3000 K, 4000 K, 5000 K
- Standards
- UL, DLC Premium
- BUG Rating
- B3-U3-G3
Description
The Westgate WPAX-100W-MCTP is a x-gen cut-off wall pack with 20% ambient light adj. 100/80/60w 30/40/50k PC lens bronze. It delivers 130LM/W of 30K/40K/50K light at 60W/80W/100W. Operates on 120-277V input power. Constructed of pc + aluminum in a bronze finish. Dimming: 0-10V. Key specifications: CRI >80, power factor >0.9, THD <20%, beam angle 97*77Degree, operating temperature -40 DegC TO 50 DegC,Sensor :-25 DegC TO 50 DegC, 50000hrs rated life, IP65 ingress protection, BUG rating B3-U3-G3. Certifications: UL, DLC Premium.
