Shop WESTWARD

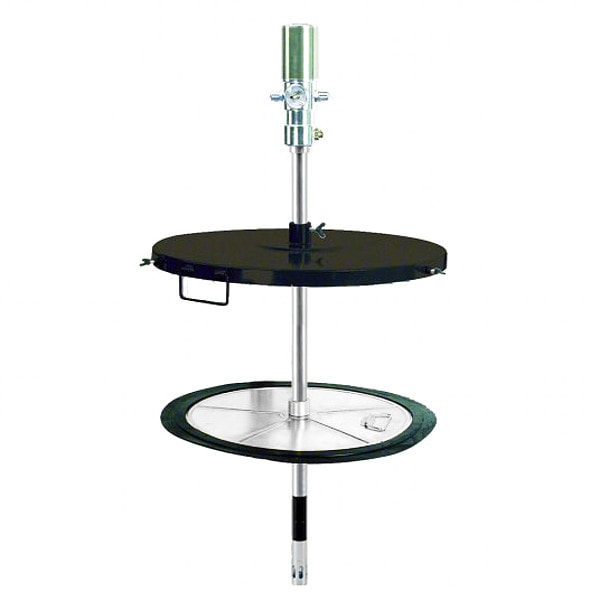

Air Drum Pump, 5,800 psi, 50:1

  • Mfr # 5TCV3

  • Zoro # G1669762

product price:  $1,183.99
/ea
Free Shipping & Returns

Key Features

Hose Length
156 in
Fits Container Size
55 gal, 400 lb
Includes
Hose
Max. Viscosity
NLGI 2
Max. Pressure
5,800 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5TCV3
Zoro #
G1669762
UPC #
190735873151
Country of Origin
China

Dimensions

Hose Length
156 in
Fits Container Size
55 gal, 400 lb
Air Motor Size
2 1/2 in
For Container Size
55 gal
Air Inlet Size
1/4 in FNTP
Spout Connection Size
3/8 in
Suction Tube Length
37 in
Hose Inside Diameter
1/4 in
Air Outlet Size
1 3/16 in
Spout Length
5/8 in
Air Inlet Connection Size
1/4 in
Hose Outside Diameter
5/8 in

Details

Item
Air Drum Pump
Includes
Hose
Max. Viscosity
NLGI 2
Max. Pressure
5,800 psi
Material
Steel
Volume per Minute
1.76 lb
Grease Type
NLGI 1 and 2
Consumption @ 100 PSI
4.3 cfm
For Use With
400 lb Drum
Power Source
Air
Ratio
50:01:00
For Container Type
Drum
Housing Material - Pumps
Steel
Air Consumption
8.5 cfm
Max. Outlet Pressure
5,800 psi
Hose Tube Material
Buna-N
Nozzle Operation
Manual
Nozzle Material
Steel
Suction Tube Material
Steel
Self-Priming
No
Air Inlet Connection Type
FNPT
Variable Speed
No
Includes Spout
Yes
Compatible NLGI Viscosity Grade
2
Mounting Bracket Included
No Mounting Bracket Included
Hose Cover Material
Buna-N
Pump Connection OD
1/4 in
Maximum Outlet Pressure
5,800 psi
Chemical Compatibility
Grease
Includes Discharge Hose
Yes
Wetted Material
Buna-N/Polyurethane/PTFE
Runs Dry
No
Pump Technology
Plunger
Pressure Ratio
50:1
Maximum Air Pressure
5,800 psi
Includes Follower Plate
Follower Plate Included
Container Cover Type Included
Drum Cover
Includes Suction Tube
Yes
Suction Tube ID
3/8 in
Discharge Connection Type
MNPT
Pump Connection ID
1/4 in
Seal Material
Buna-N; PTFE;Polyurethane
Pump Connection Type
FNPT
Discharge Tube Outlet ID
1/4 in
Minimum Fluid Temperature
80 Degrees C
Includes Nozzle
Yes
Minimum Air Pressure
70 psi
Housing Material
Steel
Duty Cycle
Continuous
Discharge Tube Outlet OD
1/4 in
Spout Material
Steel
Not Recommended Chemicals
DEF, Oil
Housing Finish
Annodized Zinc Plated
Includes Bung Adapter
No
Maximum Fluid Temperature
176 Degrees F
Spout Connection Type
BSP
Meter Type Included
No Meter Included
Static Protection
Not Groundable
Suction Tube OD
1 3/16 in
Hazardous Location Class
Not Rated
Power Source - TS Only
Air

Description

Grease Pump, Air Consumption 9 cfm, Hose Length 13 ft, Max. Viscosity NLGI 2

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
