Shop WESTWARD

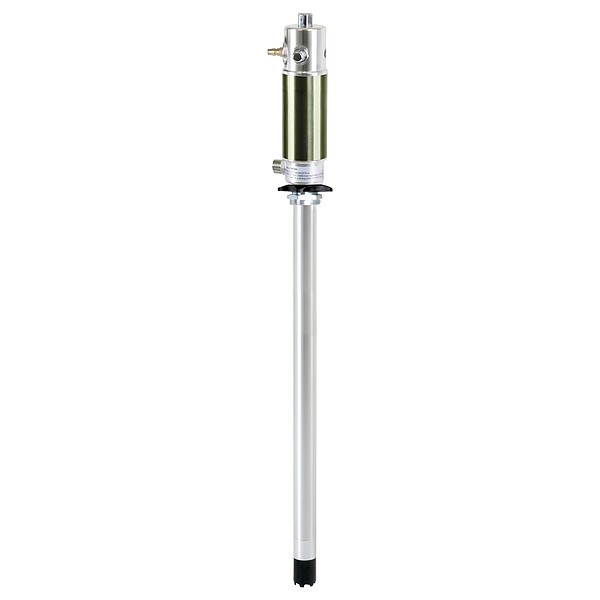

Oil Pump, Air Op, Pump Ratio 5:1, 16 gal

  • Mfr # 5TCU3

  • Zoro # G1838295

product price:  $562.99
/ea
Free Shipping & Returns

Key Features

Type
Air Operated
Air Motor Size (In.)
2-1/2
Pump Ratio
5:01
Container Size
16 gal.
Consumption @ 100 PSI
6.5 cfm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5TCU3
Zoro #
G1838295
UPC #
190735873069
Country of Origin
China

Dimensions

Air Motor Size (In.)
2-1/2
Container Size
16 gal.
For Container Size
16 gal
Air Outlet Size
1 3/16 in
Suction Tube Length
29 15/16 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Type
Air Operated
Pump Ratio
5:01
Consumption @ 100 PSI
6.5 cfm
Working Flow Max. (GPM)
6.6 gpm
Fluid Outlet Thread (In.)
3/4 MNPT
Air Inlet (In.)
1/4 in
Pump for Multiple Outlets
Yes
For Use With
Oils Up To SAE 240
Min. Air Inlet Pressure
70 psi
Max. Output
6.6 gpm
Outlet Pressure Max. (PSI)
580 psi
Max. Air Inlet PSI
115 psi
Includes
Pump
Min. Air Pressure
70 psi
Wetted Materials
Buna-N, Polyurethane, Steel
Includes Spout
No
Discharge Connection Type
MNPT
Air Consumption
8.5 cfm
Metered
No
Discharge Tube Outlet ID
1/2 in
Includes Discharge Hose
No
Includes Suction Tube
Yes
Not Recommended Chemicals
DEF, Grease
Includes Nozzle
No
Max. Oil Flow
6.6 gpm
Compatible Chemicals
Motor Oil
Max. Flow Rate
6.6 gpm
For Container Type
Drum, Bucket
Power Source
Air
Gear Lube
NT
Self-Priming
No
Runs Dry
No
Maximum Flow Rate
6.6 gpm
Pressure Ratio
5:1
Maximum Air Pressure
115 psi
Housing Material
Steel
Suction Tube Material
Steel
Minimum Air Pressure
70 psi
Includes Follower Plate
No Follower Plate Included
Meter Type Included
No Meter Included
Duty Cycle
Continuous
Hazardous Location Class
Not Rated
Discharge Tube Outlet OD
1 3/16 in
Mounting Bracket Included
No Mounting Bracket Included
Container Cover Type Included
No Cover Included
Variable Speed
No
Pump Connection Type
FNPT
Pump Technology
Plunger
Suction Tube OD
1 5/8 in
Wetted Material
Buna-N/Polyurethane/PTFE
Maximum Oil Flow
6.6 gpm
Includes Bung Adapter
No
Chemical Compatibility
Motor Oil
Static Protection
Not Groundable
For SAE Viscosity Grade - Maximum
240
Air Inlet Connection Type
NPT
Maximum Fluid Temperature
176 Degrees F
Pump Connection OD
1/2 in
Pump Connection ID
1/4 in
Minimum Fluid Temperature
80 Degrees C
Maximum Outlet Pressure
580 psi
Suction Tube ID
3/8 in
Housing Finish
Annodized Zinc Plated
Seal Material
Buna-N¿PTFE;Polyurethane

Description

Air Operated Drum Pump, Max. Air Pressure 115 psi, Discharge Connection Type MNPT, Air Consumption 7 cfm, Hose Length Not Applicable, Includes Discharge Hose No, Includes Suction Tube Yes, Includes Nozzle No, Includes Spout No
