  9. Motorized Zone Valve, 3/4 In

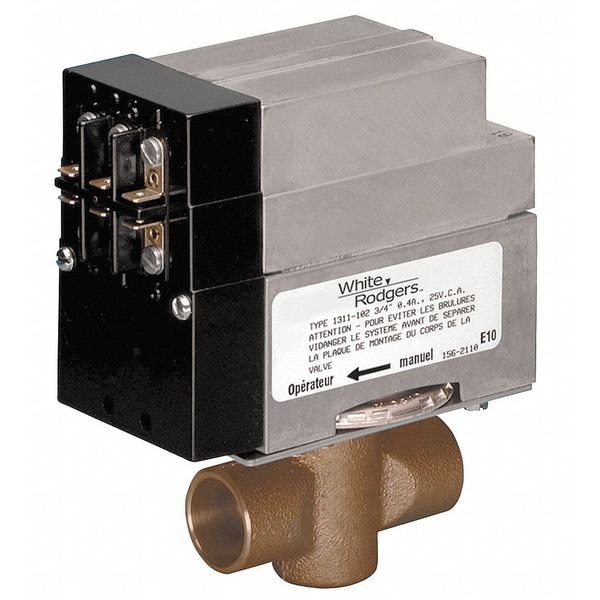

White-Rodgers Motorized Zone Valve, 3/4 In 13 61 102S1 - main

Motorized Zone Valve, 3/4 In

  • Mfr # 13 61 102S1

  • Zoro # G5300696

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Body Material
Stainless Steel
Voltage
24
For Use With
Hydronic Controls
Specifications
Closes 60 Seconds, Open 45 Seconds
Height (In.)
5 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
13 61 102S1
Zoro #
G5300696
UPC #
786710003981
Country of Origin
Mexico

Dimensions

Height (In.)
5 5/8 in
Connection Type/Size (In.)
Sweat 3/4
Depth (In.)
2 5/8 in
Width (In.)
4 5/8 in
Overall Width
4 5/8 in
Overall Length
5 5/8 in
Port Connection Size
3/4 in
Overall Depth
2 5/8 in

Details

Item
Motorized Zone Valve
Body Material
Stainless Steel
Voltage
24
For Use With
Hydronic Controls
Specifications
Closes 60 Seconds, Open 45 Seconds
Coefficient of Volume
23.5
Type
NC
Description/Special Features
Built in Auxiliary Contacts, Motor Can Be Removed Without Draining the System, Valve Stem Made of Stainless Steel
Safe Working Water PSI
50 psi
Electrical Connections
Terminal Board
Max. Water Temp. (Deg. F)
240 Degrees F
Distance Between Inlet and Outlet Port
2 7/8 in
Actuator Control Signal
On/Off
Installation Orientation
Versatile
Port Connection Type
Sweat
Valve Type
Ball
Gasket/Plug Material
Rubber
Operating Temperature - Maximum
240 Degrees F
Valve Action
Normally Closed
Stem Material
Stainless Steel
Coefficient of Volume (Cv)
23.5
Spring Action
Non-Spring Return
Fluid Temperature - Minimum
40 Degrees F
Application
Geothermal
Port Connection Gender
Female
Actuator Voltage
24V AC
Fluid Temperature - Maximum
240 Degrees F
Actuator Type
Electric
Close-Off Pressure
15 psi
Allowable Pressure - Maximum
50 psi
For Media
Water
Body Pattern
Three-Way
Bypass Port Coefficient of Volume (Cv)
23.5
Includes Actuator
Actuator Included

Description

Motorized Zone Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal On/Off, Actuator Return Action Not Applicable, Actuator Type Electric, Actuator Voltage 24V AC, Allowable Pressure - Maximum 50 psi, Application Geothermal, Body Material Stainless Steel, Body Pattern Three-Way, Bypass Port Coefficient of Volume (Cv) 23.5, Close-Off Pressure 15 psi, Coefficient of Volume (Cv) 23.5
