Boring Bar, 15.24mm, Carbide
Mfr # BP187600R
Zoro # G3931162
product price:Â
$
104.99
/ea
Free Shipping & Returns
Key Features
Grade
CG5
Style
BP
Cutting Direction
Right Hand
Measurement System
Metric
Finish - Machining
TiN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BP187600R
- Zoro #
- G3931162
- UPC #
- 4021169545511
- Country of Origin
- Germany

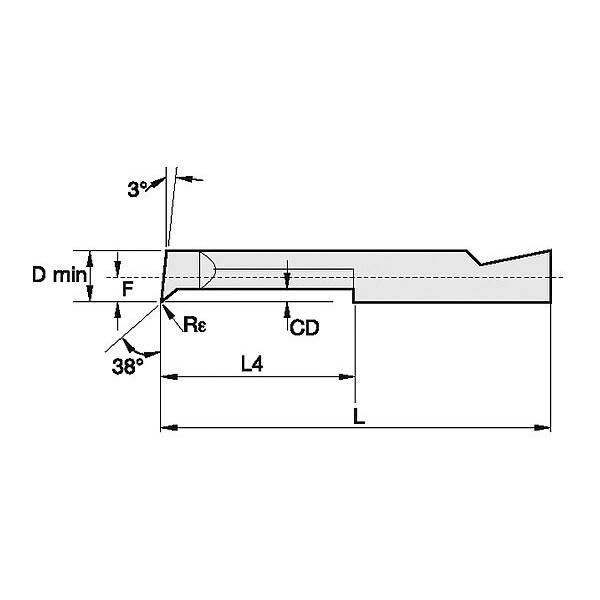

Dimensions
- Overall Length
- 41.91mm
- Radius
- 0.18mm
- Max. Bore Depth
- 15.24mm
- Min. Bore Dia.
- 4.75mm
- Wire Rope Length
- 41.91mm
- Length
- 41.91mm
Details
- Item
- Boring Bar
- Grade
- CG5
- Style
- BP
- Cutting Direction
- Right Hand
- Measurement System
- Metric
- Finish - Machining
- TiN
- Offset Point
- 2.23mm
- Boring Bar Type
- Boring
- Projection
- 1.57mm
- Primary Material Application ISO Code
- K, N
- Cutting Application
- Small Hole Boring
- Center to Cutting Tip
- 2.23mm
- Series
- A/B
- Manufacturer Grade
- CG5
- Material Grade - Machining
- Submicron
- Primary Material Application
- Aluminum, Brass, Bronze, Cast Iron, Copper
- Material - Machining
- Carbide
Description
Boring Bar, Boring, TiN, 2.23mm
