  11. Diamond Turning Insert, Diamond, 5/32 in, CDHB, 0.18mm, Diamond

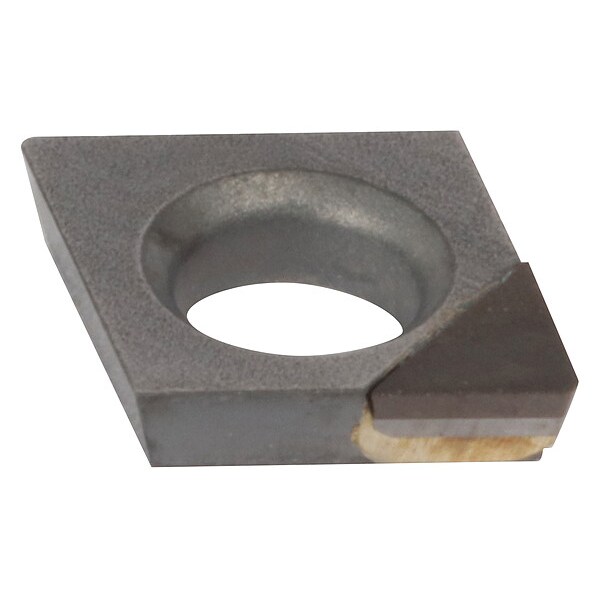

Widia Diamond Turning Insert, Diamond, 5/32 in, CDHB, 0.18mm, Diamond CDHB120605M - main

Diamond Turning Insert, Diamond, 5/32 in, CDHB, 0.18mm, Diamond

  • Mfr # CDHB120605M

  • Zoro # G3875013

product price: $128.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CDHB
Inscribed Circle
5/32 in
Insert Size
0.1563"
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDHB120605M
Zoro #
G3875013
UPC #
4021169352683
Country of Origin
United States

Dimensions

Insert Size
0.1563"
Corner Radius
0.18mm
Mounting Hole Dia.
0.0840"
Insert Thickness
0.0400"
Cutting Edge Length
4.03mm
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CDHB
Inscribed Circle
5/32 in
Chip-Breaker
No
Grade
CBN6
Insert Material
Diamond
ISO Number
CDHBS4T002M
Mounting Style
Taper Screw
Cutting Direction
Neutral
Style
CDHB
Coating
Bright (Uncoated)
Cutting Application
Turning
Material Grade - Machining
Low CBN
Material - Machining
CBN
Shape
Rhombic
Secondary Material Application
Nickel, Titanium
Measurement System
Metric
Insert Holding Type
70 Degrees to 90 Degrees Countersink Hole
Manufacturer Grade
CBN6
Primary Material Application ISO Code
H
Primary Material Application
Hardened Steel
Clearance Angle
15 Degrees
Number of Cutting Edges
1
Cutting Material Coverage
Mini Tip
Finish - Machining
Bright (Uncoated)
ANSI Code
CDHB120605M
Secondary Material Application ISO Code
S
Included Angle
80 Degrees
Material
Diamond
Coolant Fed
Non-Coolant Through

Description

Diamond Turning Insert, Inscribed Circle 5/32 in, Bright (Uncoated), ANSI Code CDHB120605M, Clearance Angle 15 Degrees
