Indexable Profiling End Mill, M1200 Mini Series, High Speed Steel, 0.1360 in Depth of Cut
Mfr # M1200D150Z05S050HN07
Zoro # G3796379
product price: $774.99
/ea
Free Shipping & Returns
Key Features
Series
M1200 Mini
Overall Length
1.5750 in
Depth of Cut
0.1360 in
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
M1200D150Z05S050HN07
Zoro #
G3796379
UPC #
4021169602313
Country of Origin
India

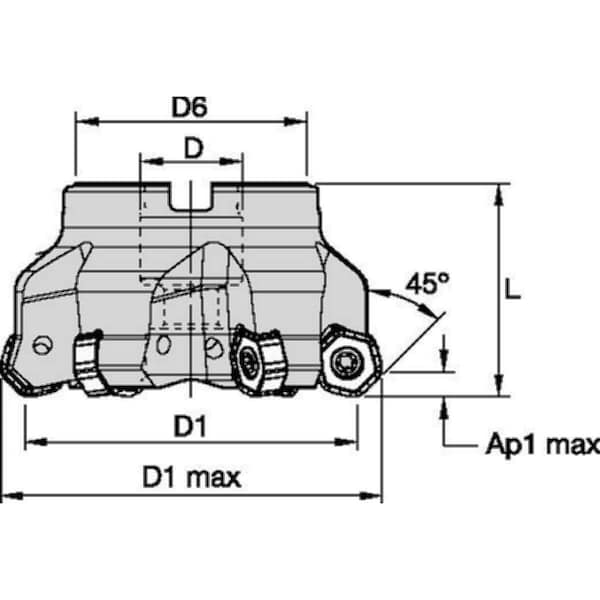

Dimensions
Overall Length
1.5750 in
Depth of Cut
0.1360 in
Insert Size
0704
Shank Dia.
1/2 in
Max. Cutting Dia.
1.8130 in
Min. Cutting Dia.
1-1/2 in
Details
Item
Indexable Profiling End Mill
Series
M1200 Mini
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
120 Degrees Hexagon
Rake
-7 Degrees Axial, -9 Degrees Radial
Compatible Hardware
Flat Point Socket Set Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver
Coolant Fed
Coolant Through
Number of Inserts
5
Insert Style
HNGJ....ANENLD
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling
Toolholder Style
HN0704
ANSI Code
M1200D150Z05S050HN07
ISO Number
M1200D150Z05S050HN07
Insert Holding Type
Screw
Max. Speed
15,800 RPM
Features
First Choice for Low Depth-of-Cut Face Milling, Maximum Number of Teeth per Diameter, Twelve Cutting Edges
Description
Indexable Profiling End Mill, Max. Cutting Dia. 1.8130 in, Depth of Cut 0.1360 in, Shank Dia. 1/2 in, Overall Length 1.5750 in, ANSI Code M1200D150Z05S050HN07, Compatible Hardware Flat Point Socket Set Screw, Insert Screw M4x0.7 x 10 T15, Torx Driver, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling
