Indexable Profiling End Mill, VSM490-10 Series, High Speed Steel, 10.00mm Depth of Cut
Mfr # VSM490D100Z08S32XN10
Zoro # G3792151
product price:Â $1,092.99
/ea
Free Shipping & Returns
Key Features
Series
VSM490-10
Overall Length
50.00mm
Depth of Cut
10.00mm
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
VSM490D100Z08S32XN10
Zoro #
G3792151
UPC #
4059782476318
Country of Origin
Multiple

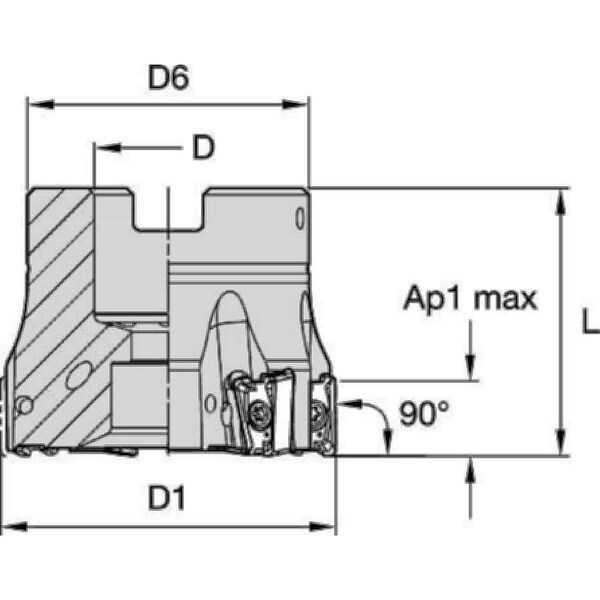

Dimensions
Overall Length
50.00mm
Depth of Cut
10.00mm
Insert Size
100408
Arbor Dia.
32.00mm
Hub Outside Dia.
80.00mm
Details
Item
Indexable Profiling End Mill
Series
VSM490-10
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Insert Shape
90 Degrees Rectangle Mill 4
Rake
-12.6 Degrees Radial, -8 Degrees Axial
Insert Style
XNGU SRMM
Compatible Hardware
Anti-Seize Lubricant, Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9
Max. Speed
15,200 RPM
Features
Best-in-Class Wall Finish in Axial Stepping-Down Jobs, Coarse, Lower Cutting Forces and Real Soft Cutting Action, Medium and Fine Pitch Cutter Density Available, Perfect Fit for Taper 40 Spindles and Driven Units, True 90 Degrees Roughing Tool with Embedded Finishing Capability in One Tool
Cutting Application
Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
ANSI Code
VSM490D100Z08S32XN10
Insert Holding Type
Screw
Number of Inserts
8
Coolant Fed
Coolant Through
Side Cutting Edge Angle
90 Degrees
ISO Number
VSM490D100Z08S32XN10
Description
Indexable Profiling End Mill, Depth of Cut 10.00mm, Overall Length 50.00mm, ANSI Code VSM490D100Z08S32XN10, Compatible Hardware Anti-Seize Lubricant, Coolant Screw, Hardware Chave Torx DT-9IP, Insert Screw M3x0.5 x 7.2 IP9, Coolant Fed Coolant Through, Cutting Application Face Milling, Side and Face Milling, Side/Shoulder Milling: Square End, Slotting: Square End
