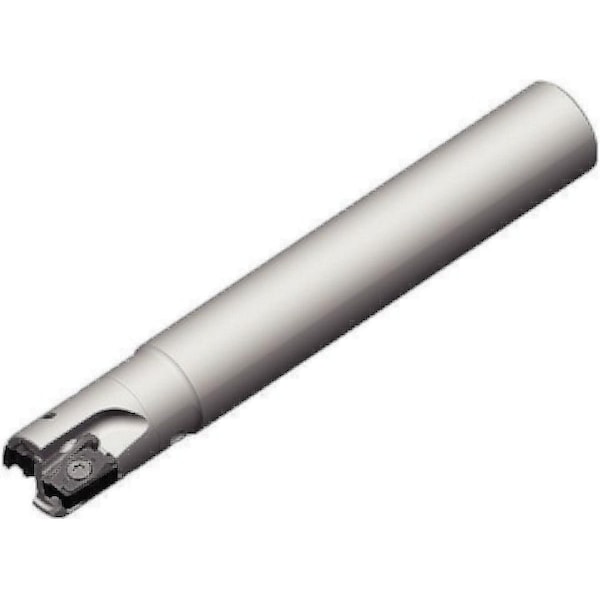

Widia Indexable Square Shoulder End Mill, VSM490-15 Series, 1.2500" Max Cut Dia, High Speed Steel 5873102 - main

Indexable Square Shoulder End Mill, VSM490-15 Series, 1.2500" Max Cut Dia, High Speed Steel

  • Mfr # 5873102

  • Zoro # G3780909

product price:  $487.99
/ea
Free Shipping & Returns

Key Features

Series
VSM490-15
Cutting Dia.
1.2500"
Overall Length
8 in
Number of Inserts Required
3
Depth of Cut
0.5910 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5873102
Zoro #
G3780909
UPC #
4050841729338
Country of Origin
Germany

Dimensions

Cutting Dia.
1.2500"
Overall Length
8 in
Depth of Cut
0.5910 in
Shank Dia.
1-1/4 in
Insert Size
15T608
Min. Cutting Dia.
1-1/4 in
Head Projection Length
2-1/4 in
Shank Length
5-3/4 in

Details

Item
Indexable Square Shoulder End Mill
Series
VSM490-15
Number of Inserts Required
3
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Shank Shape
Straight
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP
ANSI Code
VSM490D125Z03C125XN15L800
Shank Type - Machining
Straight
Insert Shape
90 Degrees Rectangle Mill
Coolant Fed
Coolant Through
Cutting Application
Face Milling, Pocketing, Side/Shoulder Milling: Square End, Slotting: Square End
Toolholder Style
XN15
Max. Speed
22,100 RPM
Number of Inserts
3
Number of Coolant Holes
2
Insert Style
XNGU SRMM
ISO Number
VSM490D125Z03C125XN15L800
Features
Effective Internal Coolant Feature, in Stepless in Solution, Reaching the Cutting Edge Precisely, Strong Concept to Run up to 15mm (0.590 in) Depth of Cut, Superior Wall and Surface Finish Capabilities, True 0 Degrees to Run Precise Applications in Multiple Axial Passes
Insert Holding Type
Screw
Rake
-17.4 Degrees Radial, -8 Degrees Axial
Number of Flutes
3

Description

Indexable Square Shoulder End Mill, Shank Dia. 1-1/4 in, Straight, Overall Length 8 in, ANSI Code VSM490D125Z03C125XN15L800, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4x0.7 x 10 IP 15, Torx Plus Drive Wrench DT15IP, Coolant Fed Coolant Through
