  11. Insert, Trigon, 2, WPHT, .2, Carbide

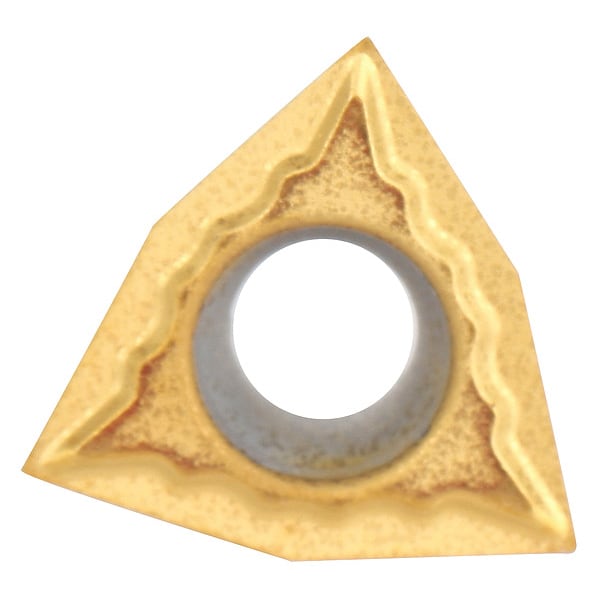

Widia Insert, Trigon, 2, WPHT, .2, Carbide WPHT2150 CG5 - main

Insert, Trigon, 2, WPHT, .2, Carbide

  • Mfr # WPHT2150 CG5

  • Zoro # G3877095

product price: $13.19
/ea
Sold in multiples of 5 for $65.95

Key Features

Insert Shape
Trigon
Insert Style
WPHT
Inscribed Circle
2
Insert Size
0.2500"
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WPHT2150 CG5
Zoro #
G3877095
UPC #
4021169380181
Country of Origin
United States

Dimensions

Insert Size
0.2500"
Corner Radius
.2
Insert Thickness
0.0940"
Through Hole Inside Dia.
0.1100 in
Cutting Edge Length
4.34mm
Thickness
1.5

Details

Item
Insert
Insert Shape
Trigon
Insert Style
WPHT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
CG5
Insert Material
Carbide
Rake
Positive
ISO Number
WPHT040201
Cutting Direction
Neutral
Coating
TiN
Insert Holding Type
40 Degrees to 60 Degrees Countersink Hole
ANSI Code
WPHT2150
Shape
Trigon
Included Angle
80 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Style
On One Side
Secondary Material Application ISO Code
K
Secondary Material Application
Cast Iron
Primary Material Application ISO Code
M, N, P, S
Manufacturer Grade
CG5
Cutting Application
Outside and Inside Diameter Turning
Material - Machining
Carbide
Finish - Machining
TiN
Coating Process
PVD
Number of Cutting Edges
3
Clearance Angle
11 Degrees
Measurement System
Fractional Inch
Material
Carbide

Description

Insert, Inscribed Circle 1/4 in, TiN

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
